Haws Corporation

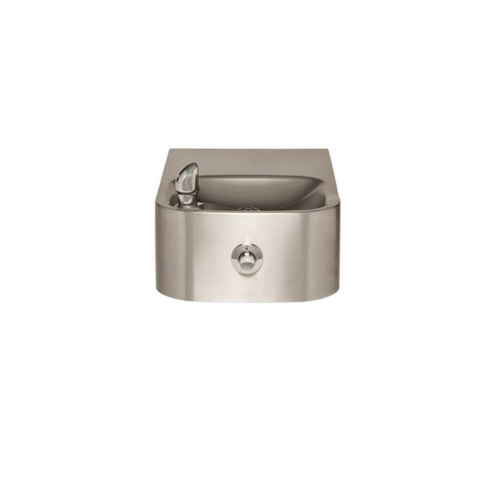

Model 1109FR: ADA Outdoor Freeze Resistant Wall Mounted Drinking Fountain


The Haws 1109FR barrier-free drinking fountain uses a fully engineered pneumatic operated freeze-resistant valve assembly for continual use during winter months. Wall mounted design allows the 1109FR to be placed securely in multiple locations without taking up excess space. Equipped with vandal resistant components, this fountain is not easily disrupted, quickly discouraging vandals.

  • 18 gauge Type 304 Stainless Steel design provides a well constructed sturdy fountain
  • Beautiful satin finish resists stains and corrosion
  • Soft rounded corners prevent mishaps and other accidents that may occur once the fountain is installed
  • One-piece stamped bowl makes for an aesthetically pleasing and durable design
  • To add a bottle filler, order models 1920FRBP15, and 6469. For this fountain with bottle filler spec sheet, see below in Resources.

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains and electric water coolers to be lead-free by all known definitions including NSF/ANSI Standard 61, Section 9, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006).

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.

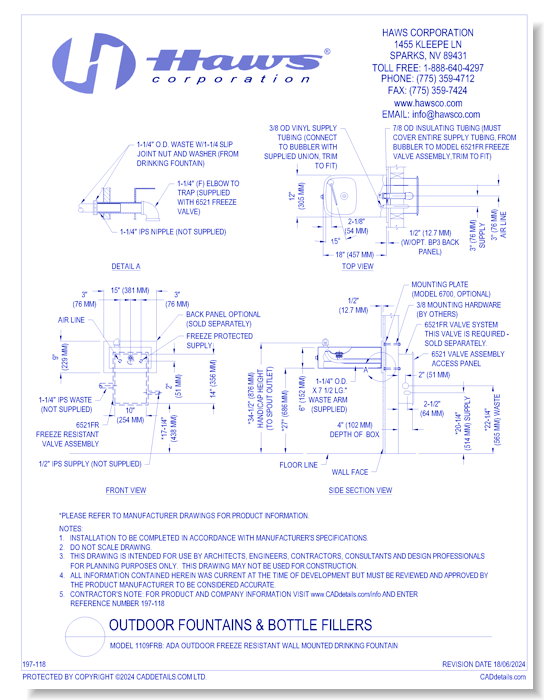

CAD Drawings Haws Corporation Model 1109FR: ADA Outdoor Freeze Resistant Wall Mounted Drinking Fountain
