Haws Corporation

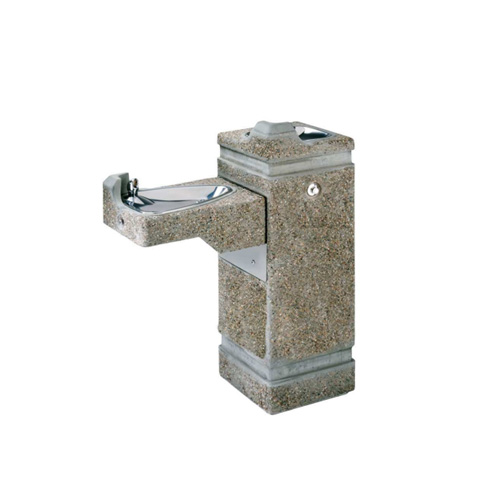

Model 3150FR: ADA Outdoor Freeze-Resistant Concrete Pedestal Fountain


Haws concrete pedestal drinking fountains, like the 3150FR, use a freeze-resistant valve assembly to provide year round operation. Fully engineered pneumatic valve assembly is one of the best in freeze-resistant technologies. The "Hi-Lo" adult or child barrier free design of the 3150FR allows the square pedestal to be placed securely in multiple locations, all while providing for twice the users as regular drinking fountains. Equipped with vandal resistant components, this fountain is not easily disrupted, quickly discouraging the worst of vandals.

  • Adjustable design allows the arm to be mounted at adult or child height as required by ADA
  • Concrete with exposed aggregate finish and wire to reinforce the casting offers an extremely solid and highly protected fountain
  • Hood extension protects the bubbler head with a partial enclosure, for a greater protected drinking point
  • Simplistic Portland Gray cement creates just the right amount of appeal for an outdoor fountain

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act including Child ADA. Haws manufactures drinking fountains and electric water coolers to be lead-free by all known definitions including NSF/ANSI Standard 61, Section 9, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006).

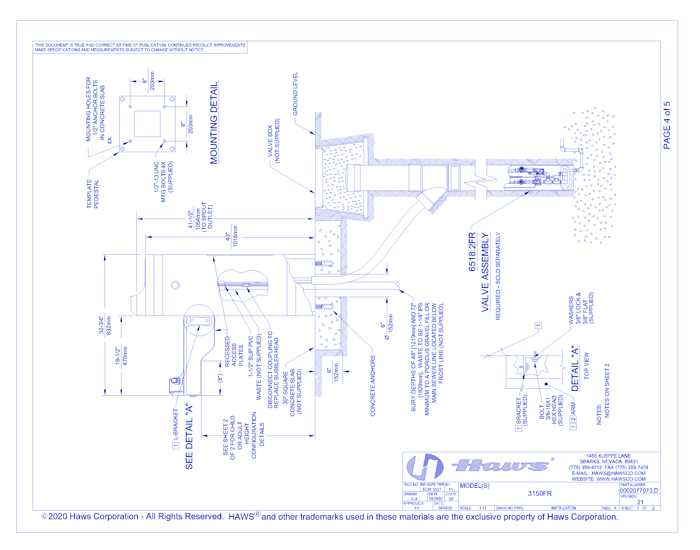

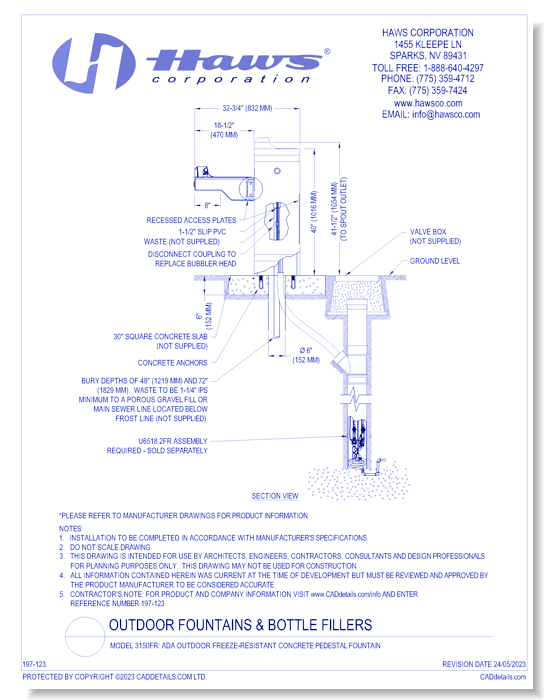

CAD Drawings Haws Corporation Model 3150FR: ADA Outdoor Freeze-Resistant Concrete Pedestal Fountain
