Haws Corporation

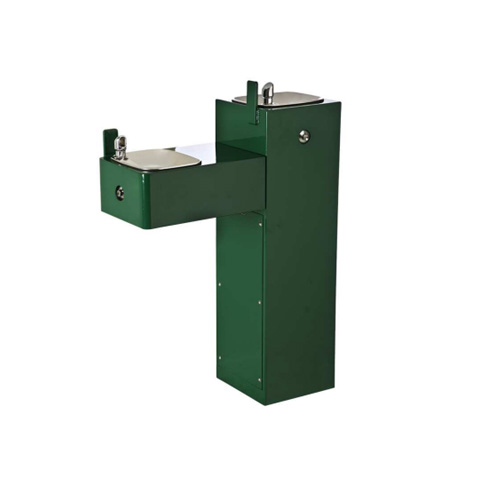

Model 3300FR: ADA Outdoor Steel Freeze-Resistant Pedestal Fountain


Haws heavy-duty pedestal drinking fountain 3300FR uses a freeze-resistant valve assembly to provide year round operation. Fully engineered pneumatic valve assembly is one of the best in freeze-resistant technologies. The "Hi-Lo" barrier free design of the 3300FR allows the square pedestal to be placed securely in multiple locations, all while providing for twice the users as regular drinking fountains. Equipped with vandal resistant components, this fountain is not easily disrupted, quickly discouraging the worst of vandals.

  • Heavy-duty 11 gauge fabricated galvanized steel with green powder-coated finish provides exceptional corrosion resistance in one of the toughest made fountains Haws produces

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains and electric water coolers to be lead-free by all known definitions including NSF/ANSI Standard 61, Section 9, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006).

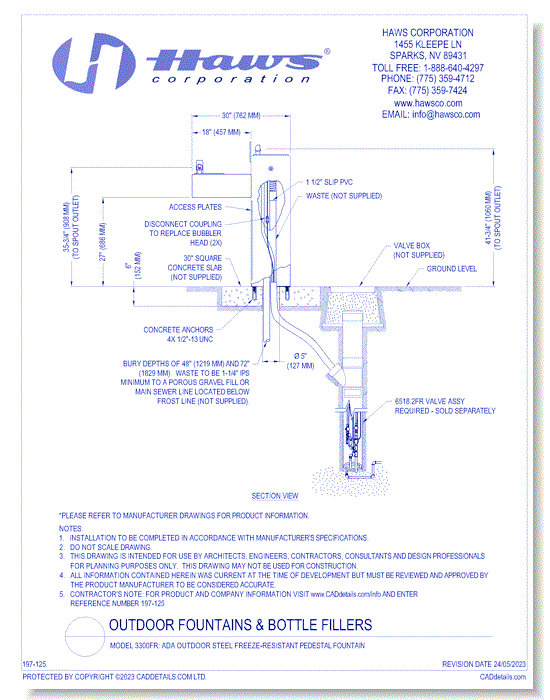

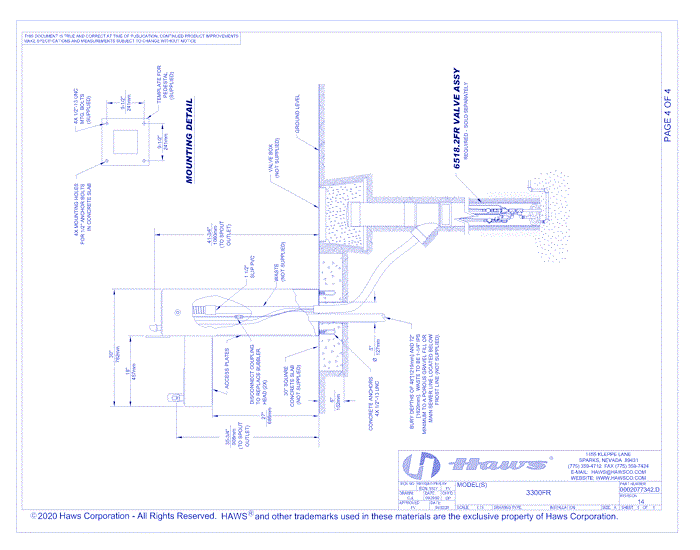

CAD Drawings Haws Corporation Model 3300FR: ADA Outdoor Steel Freeze-Resistant Pedestal Fountain
