Haws Corporation

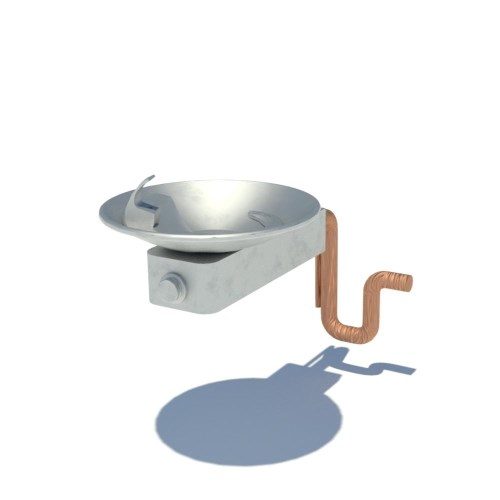

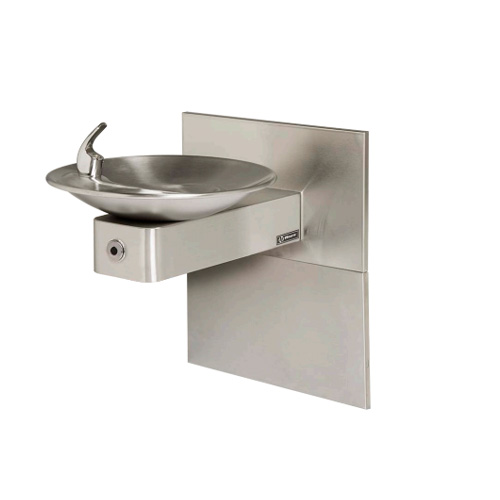

Model 1001MSHO: Wall Mounted ADA Touchless Fountain w/Mounting System


The Haws 1001MSHO ADA touchless stainless-steel drinking fountain incorporates a sensor operated stainless steel solenoid valve controlled by a transformer for hands-free operation. A pressure regulator is used to adjust the bubbler flow according to incoming water pressures.

  • Touchless operation for safety and peace of mind
  • 18 gauge Type 304 Stainless Steel bowl assembly mounted on a 14 gauge Type 304 Stainless Steel wall bracket
  • Front access plate allows for front access of P-trap and stop
  • 100% lead-free waterways
  • Polished chrome-plated brass vandal-resistant bubbler head with integral laminar anti-squirt flow eliminates water splash
  • Beautiful satin finish resists stains and corrosion

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains and electric water coolers to be lead-free by all known definitions including NSF/ANSI Standard 61, Section 9, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006).

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.

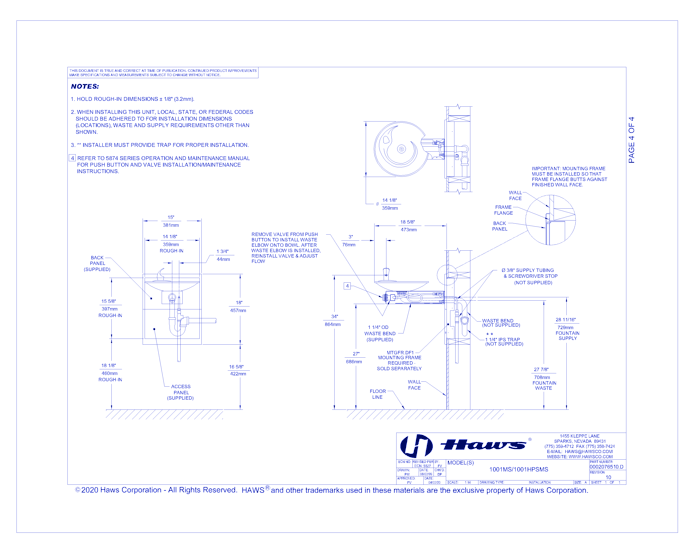

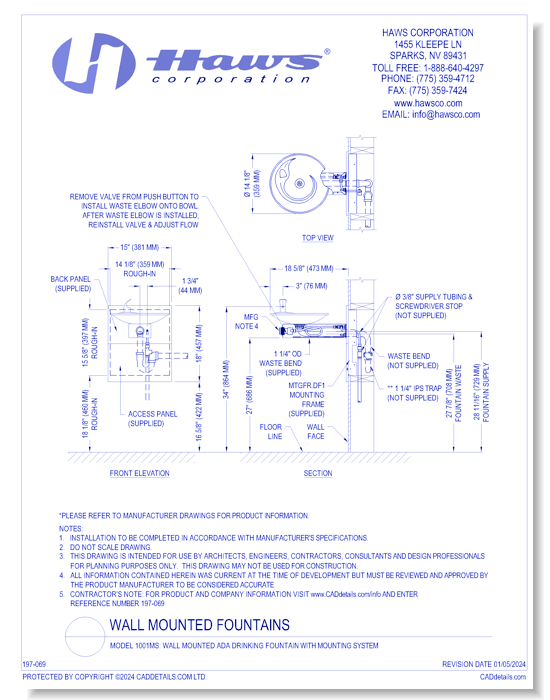

CAD Drawings BIM Models Haws Corporation Model 1001MSHO: Wall Mounted ADA Touchless Fountain w/Mounting System
