Haws Corporation

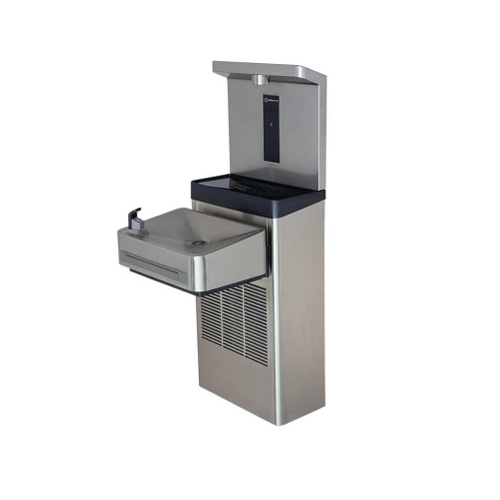

Model 1211SF: Wall Mounted ADA Filtered Water Cooler with Bottle Filler


The Haws 1211SF wall-mount filtered ADA water cooler with bottle filler is the newest addition to the most comprehensive hydration offering in the industry. The modern, innovative design is tailored to meld with office spaces, universities and airports, or serve the functional needs of spaces like a school gymnasium. The electronic push bar activated solenoid valve provides easy activation, and the pressure-regulating bubbler with a flexible antimicrobial rubber mouth guard requires no adjusting. Sensor activated bottle filler allows for hands free operation, and intuitive LED electronic display keeps the user informed when the water is being filtered and how many plastic bottles have been saved. Fresh, always filtered water with the Electronic Lifecycle Control feature shuts water flow off when filter reaches its gallons capacity. Flow will begin again when filter is replaced.

  • Flexible bubbler mouth guard to protect against injury
  • Self-regulating bubbler flow - no need to adjust to varying incoming water pressures
  • Anti-rotational screwed-in-place bubbler head
  • Instantaneous tankless water cooler for consistent cool water during use of unit
  • Hands-free sensor operated bottle filler
  • Auto purge feature automatically cycles once every 24 hours to assure a fresh water supply as well as trap integrity
  • LED illuminated bottle fill area
  • Quick 1.1 GPM fill rate (depending on incoming pressure) for bottle filler
  • Smart energy savings feature powers down refrigeration system after 2 hours of non-use and the lights are shut off, and will automatically start again when used
  • Programmable to be shut-down during planned facility closures, weekends, etc.
  • High traffic area ready with a 3000-gallon (11,356 L) capacity filter
  • Durable, easy to clean stainless steel skin
  • Retrofit installation compatibility over many existing water coolers
  • 100% lead free waterways
  • Unique basin design reduces water splashing and simplifies cleaning
  • Galvanized steel frame
  • Rated for indoor use
  • Designed and assembled in the USA

A bubbler head deactivation feature is available on this model and allows sites the flexibility to temporarily deactivate and remove the drinking fountain bubbler head. This feature will have a "dip" switch that will need to be deactivated during installation. In addition, the unit will include informational signage for users and a bubbler hole cover plate to replace where the bubbler was located. This deactivation can be reversed when normal drinking fountain usage is required. The feature provides facilities with the full functionality of the unit to meet building and ADA compliance requirements.

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.

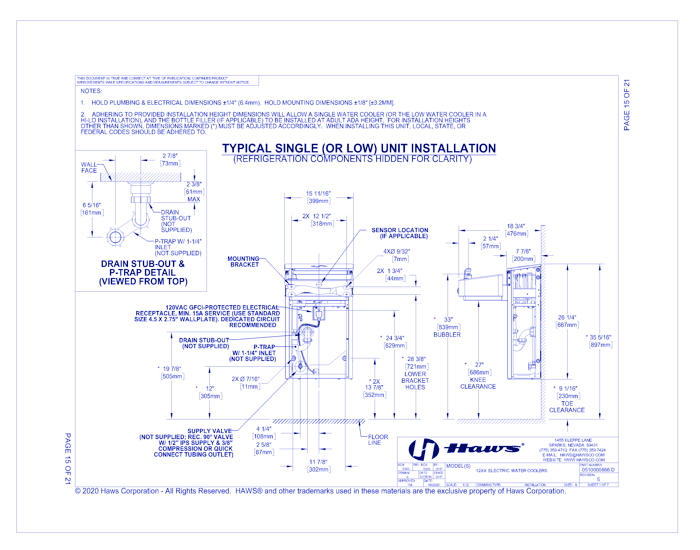

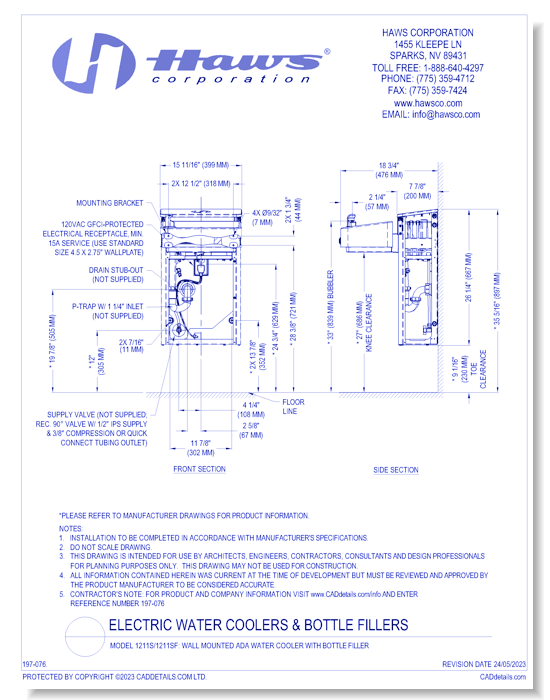

CAD Drawings BIM Models Haws Corporation Model 1211SF: Wall Mounted ADA Filtered Water Cooler with Bottle Filler

Listing Back To Top

Design Visualizer

Design Visualizer

Model 1211S/1211SF: Wall Mount ADA Water Cooler with Bottle Filler
Model 1211S/1211SF: Wall Mount ADA Water Cooler with Bottle Filler
Model 1211S/1211SF: Wall Mount ADA Water Cooler with Bottle Filler

Downloads

Architectural Product Information

About Education Specs Media

CAD Toolbar

CADdetails™
PDF DWF DWG Printable CAD VWX DXF
Manufacturer DWG
MFG PDF MFG DWF MFG DWG MFG Printable CAD MFG VWX MFG DXF

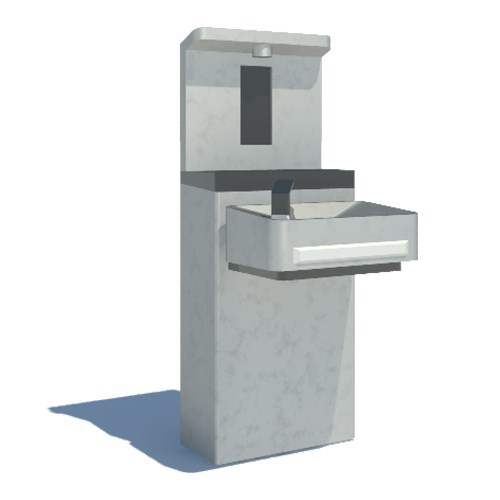

BIM & 3D Toolbar

Revit & SketchUp
Revit Family
