Haws Corporation

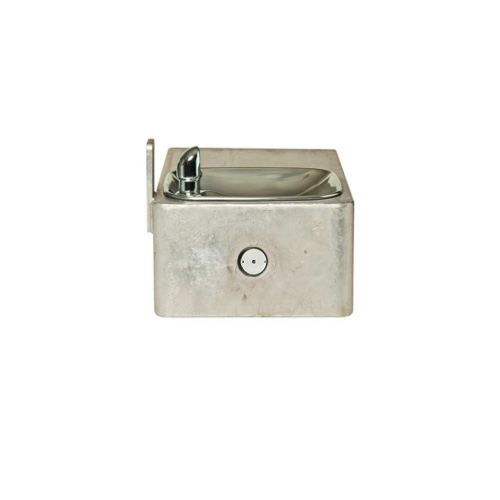

Model 1025G: ADA Steel Outdoor Wall Mounted Fountain


The Haws 1025G outdoor barrier-free drinking fountain uses a patented push-button stainless steel valve assembly allowing for front access stream adjustment as well as cartridge and strainer access. This wall mounted fountain offers the 'only' all stainless-steel valve body that is machined out of solid bar stock, is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and has front access to the water stream height adjustment for easy maintenance without having to remove the valve.

  • Heavy-duty 11 gauge fabricated galvanized steel provides exceptional corrosion resistance in one tough built fountain
  • 100% lead-free waterways
  • Maintenance is made easy with front access to valve adjustment and cartridge replacement
  • Welded heavy-duty bubbler guard protects the drinking point from misuse

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains and electric water coolers to be lead-free by all known definitions including NSF/ANSI Standard 61, Section 9, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006).

Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.

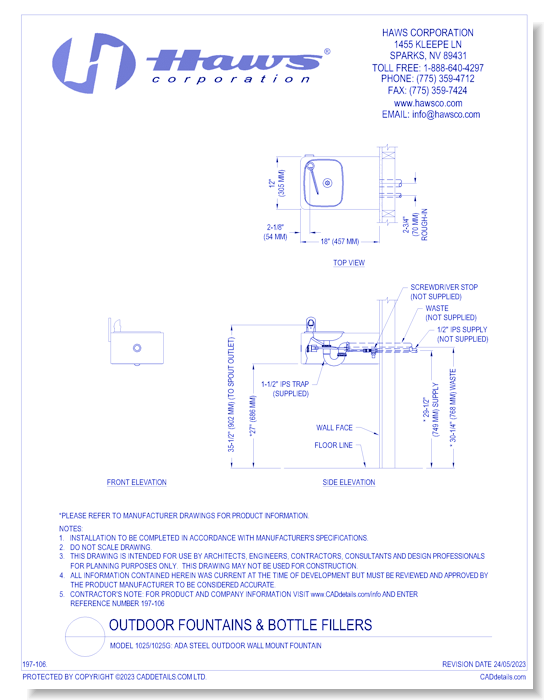

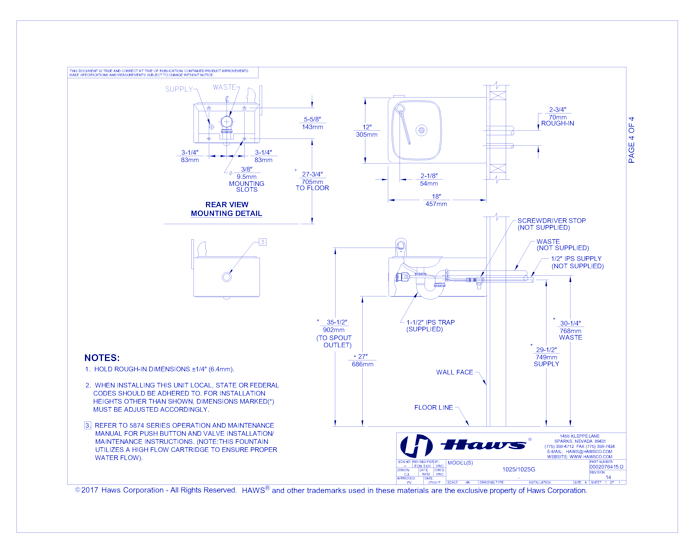

CAD Drawings Haws Corporation Model 1025G: ADA Steel Outdoor Wall Mounted Fountain
