Haws Corporation

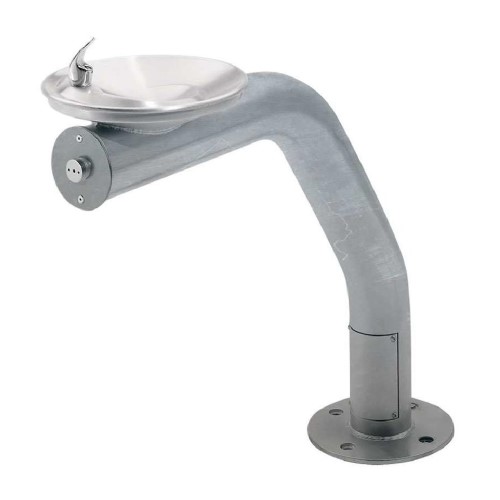

Model 3380G: ADA Outdoor Steel Pedestal Fountain


Haws pedestal drinking fountain 3380G uses a patented stainless steel push-button valve assembly allowing for front access stream adjustment as well as cartridge and strainer access. This pedestal mounted fountain offers the 'only' all stainless-steel valve body that is machined out of solid bar stock, is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and has front access to the water stream height adjustment for easy maintenance without having to remove the valve. Equipped with vandal resistant components, this fountain is not easily disrupted, quickly discouraging the worst of vandals.
  • Heavy-duty 11 gauge thick steel with rough unfinished galvanized surface provides an exceptional corrosion resistance in one of our toughest made fountains
  • 100% lead-free waterways
  • Maintenance is made easy with front access to valve adjustment and cartridge replacement
Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains and electric water coolers to be lead-free by all known definitions including NSF/ANSI Standard 61, Section 9, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953).

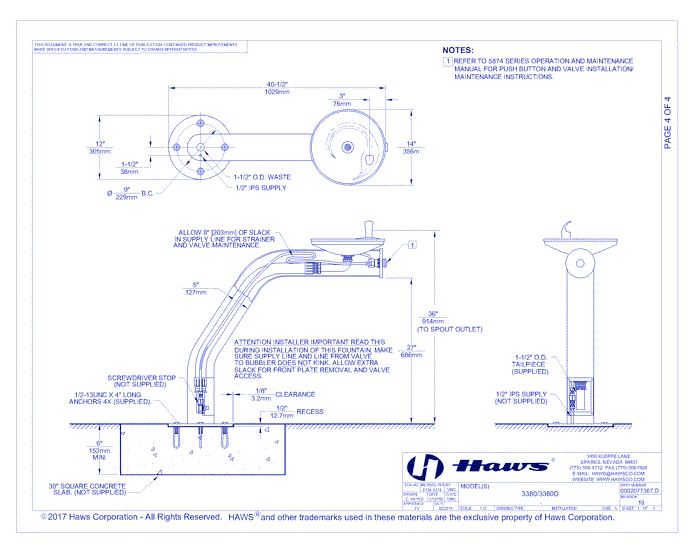

CAD Drawings Haws Corporation Model 3380G: ADA Outdoor Steel Pedestal Fountain

Listing Back To Top

Design Visualizer

Design Visualizer

Model 3380G: ADA Outdoor Steel Pedestal Fountain
Model 3380G: ADA Outdoor Steel Pedestal Fountain

Downloads

Architectural Product Information

About Education Specs Media

CAD Toolbar

CADdetails™
PDF DWF DWG Printable CAD VWX DXF
Manufacturer DWG
MFG PDF MFG DWF MFG DWG MFG Printable CAD MFG VWX MFG DXF
