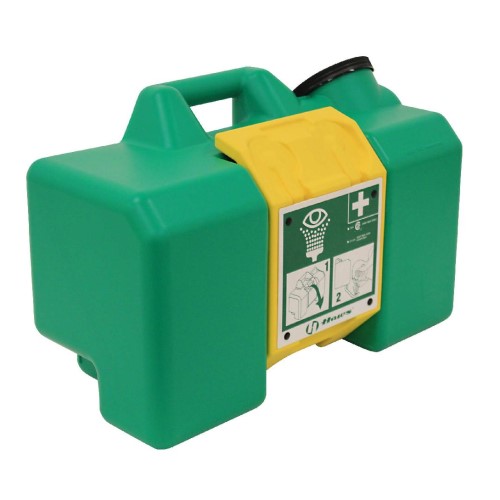

Model 7501: Portable Gravity Fed Eyewash


The newly retooled Haws 7501 compact portable eyewash is a 9-gallon (34.1 L) capacity gravity operated portable eyewash that supplies a continuous flow of water for a full 15 minutes at .4 gpm. This unit is a cost-effective solution ideal for locations without access to potable water, including temporary decontamination sites, temporary treatment facilities, and short-term job sites. Product enhancements include:
  • Featuring a FDA approved high-density green polyethylene tank that is easily activated by pulling the yellow activation arm down to the open position
  • A wide-fill opening with a securely threaded cap, and a pronounced 'Max Fill' line permits easy inspection, cleaning and filling
  • Relocation is simple due to 'Lift Here' graphics, easily mounted bracket (included) and light design of this 9-gallon (34.1 L) portable
  • Measurements: 14-1/2" high, 22" wide, 10-1/8" (36.8 x 55.9 x 25.7 cm) deep. *Note: Unit must be wall hung
Certified by CSA to meet the ANSI Z358.1 Standard for Emergency Eyewash and Shower Equipment. This is clearly called out on the exterior of the unit.

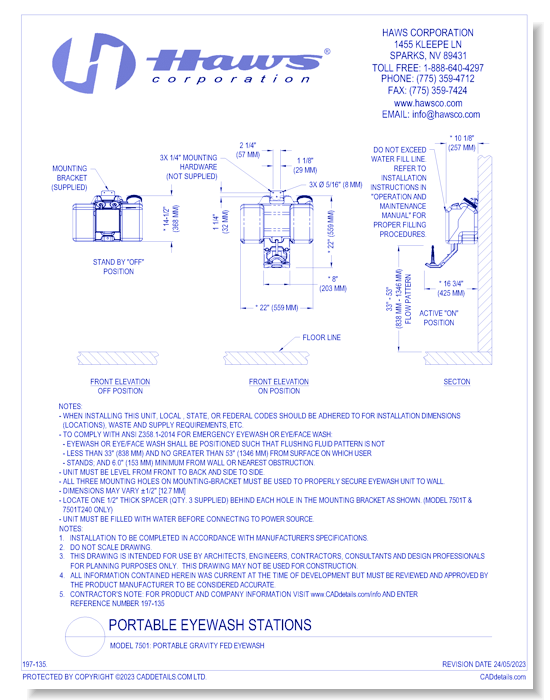

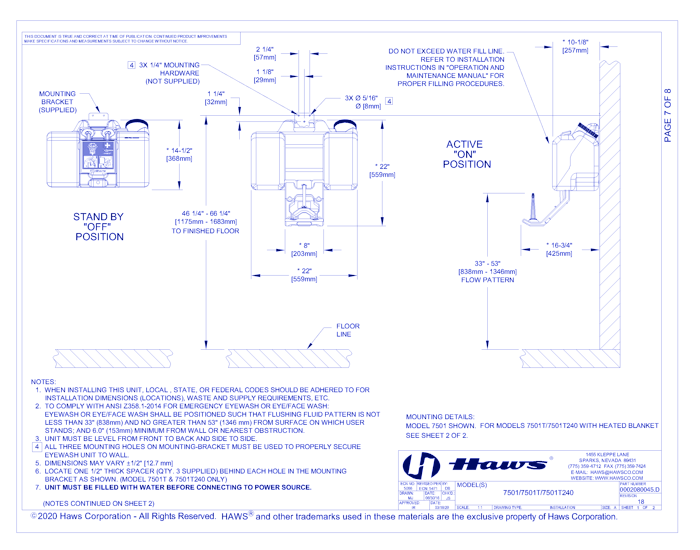

CAD Drawings Haws Corporation Model 7501: Portable Gravity Fed Eyewash
