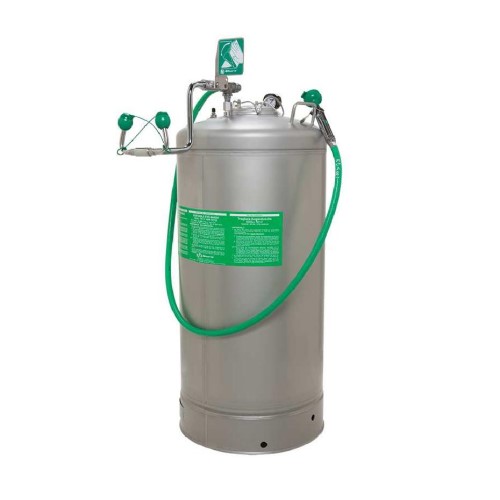

Model 7601.37: Portable Emergency Air-Pressurized Eyewash


Hazardous chemical spills occur in isolated areas all over the world everyday and, Haws is working to position models like this pressurized 37 gallon (140 L) portable eyewash and body spray in such areas, providing a reliable source of safety for the irrigation process. More specifically, Model 7601.37 is able to do so by combining the use of twin soft-flo eyewash heads with a face and body-spray head.
  • Features a 37 gallon (140 L) ASME rated stainless steel tank
  • Protective measures include: air pressure gauge, pressure relief valve, and tire-type air fill valve
  • Includes a 6 foot (182.9 cm) hose that extends the body-spray reach expanding the unit's protective capabilities
  • Measurements: 60" (152.4 cm) high, 27" (68.6 cm) deep
Certified by CSA to meet the ANSI Z358.1 Standard for Emergency Eyewash and Shower Equipment.

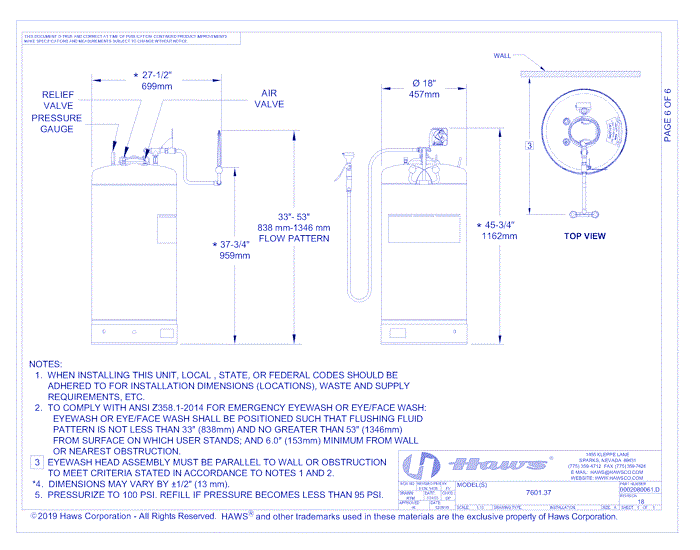

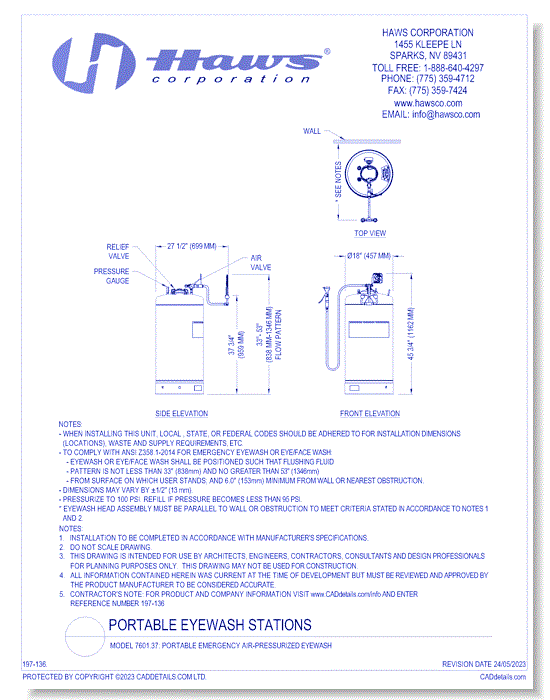

CAD Drawings Haws Corporation Model 7601.37: Portable Emergency Air-Pressurized Eyewash

Listing Back To Top

Design Visualizer

Design Visualizer

Model 7601.37: Portable Emergency Air-Pressurized Eyewash
Model 7601.37: Portable Emergency Air-Pressurized Eyewash

Downloads

Architectural Product Information

About Specs Media

CAD Toolbar

CADdetails™
PDF DWF DWG Printable CAD VWX DXF
Manufacturer DWG
MFG PDF MFG DWF MFG DWG MFG Printable CAD MFG VWX MFG DXF
