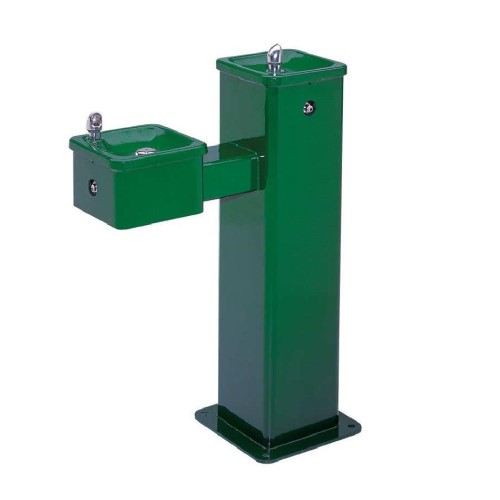

Model 3500FR: ADA Outdoor Freeze-Resistant Pedestal Fountain


Haws 3500FR superior-duty pedestal drinking fountain uses a freeze-resistant valve assembly to provide year round operation. Our fully engineered pneumatic valve assembly is one of the best in freeze-resistant technologies. Easy maintenance through a heavy gauge steel access door with heavy-duty hinges and key lock. The "Hi-Lo" barrier-free design of the 3500FR allows the square pedestal to be placed securely in multiple locations, all while providing for twice the users as regular drinking fountains. Equipped with numerous vandal resistant components, this fountain is not easily disrupted, quickly discouraging the worst of vandals.
  • Powder-coated green 12 gauge Type 304 Stainless Steel pedestal with integral 3/8" (.95 cm) thick cast stainless steel basins
Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains and electric water coolers to be lead-free by all known definitions including NSF/ANSI Standard 61, Section 9, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006).

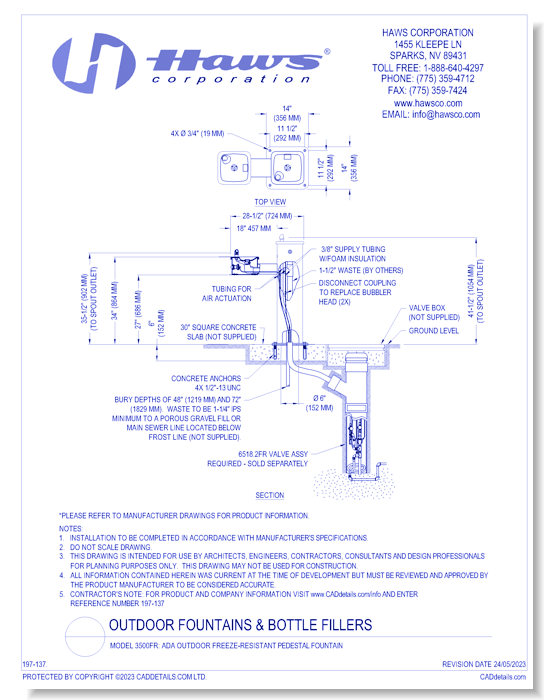

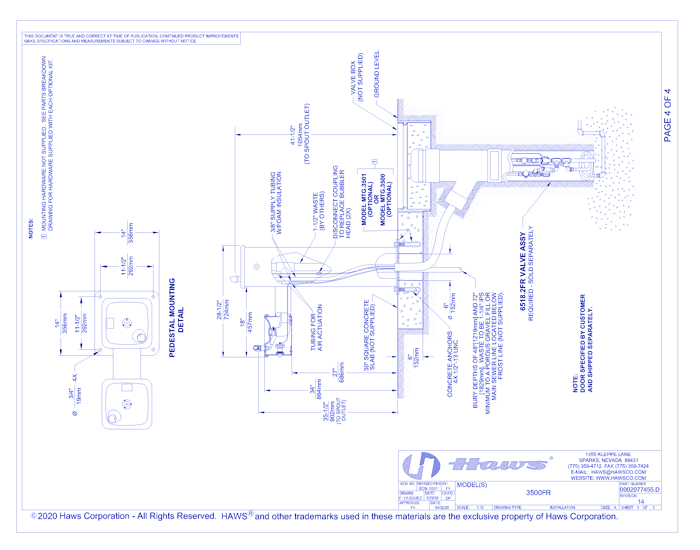

CAD Drawings Haws Corporation Model 3500FR: ADA Outdoor Freeze-Resistant Pedestal Fountain
