Haws Corporation

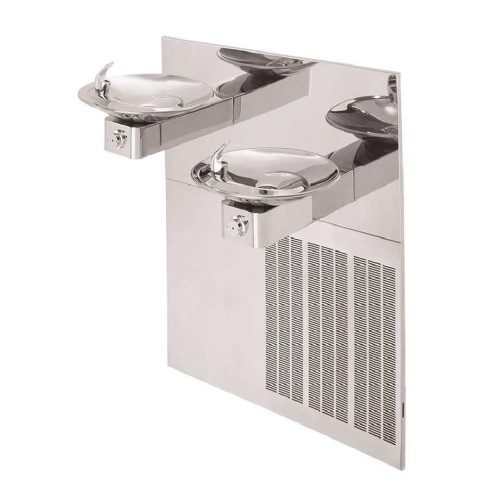

Model H1011.8HPS: ADA Chilled Dual Wall-Mount Fountain


Model H1011.8HPS (High-Polished Stainless) hi-lo electric water cooler provides 8 gph (30.3 L) chilled water performance in an engineered polished stainless steel skin. This wall-mounted swirl bowl designed fountain offers the only all stainless-steel valve body that is machined out of solid bar stock, is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and has front access to the water stream height adjustment for easy maintenance without having to remove the valve. Outfitted with such protective features as vandal-resistant bubbler heads, waste strainer, and bottom plates, these electric water coolers are quick to discourage vandals.
  • 18-gauge Type 304 high-polished stainless steel bowl assembly mounted on a 14-gauge Type 304 high-polished stainless steel wall bracket
  • 100% lead-free waterways
  • Grille slots are designed to eliminate sharp edges and are backed with a foam filter to protect the fan motor and high displacement compressor from debris
  • Designed to run at a low energy usage, this water cooler is assured to have a long-lasting life
  • Laminar flow prevents splashing, keeping the drinking area contained and clean
  • Maintenance is made easy with front access to valve adjustment and cartridge replacement
  • Beautiful polished finish resists stains and corrosion
Model H1011.8HPS meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains and electric water coolers to be lead-free by all known definitions including NSF/ANSI Standard 61, Section 9, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006). Note: Electric water coolers are not recommended or designed for outdoor applications or enclosed pool areas (chlorine). These conditions may void warranty.
CAD Drawings Haws Corporation Model H1011.8HPS: ADA Chilled Dual Wall-Mount Fountain

Listing Back To Top

Design Visualizer

Design Visualizer

Model H1011.8HPS/H1011.8HPSHO: ADA Chilled Dual Wall-Mount Fountain
Model H1011.8HPS/H1011.8HPSHO: ADA Chilled Dual Wall-Mount Fountain

Downloads

Architectural Product Information

About Specs Media

CAD Toolbar

CADdetails™
PDF DWF DWG Printable CAD VWX DXF
Manufacturer DWG
MFG PDF MFG DWF MFG DWG MFG Printable CAD MFG VWX MFG DXF
