Haws Corporation

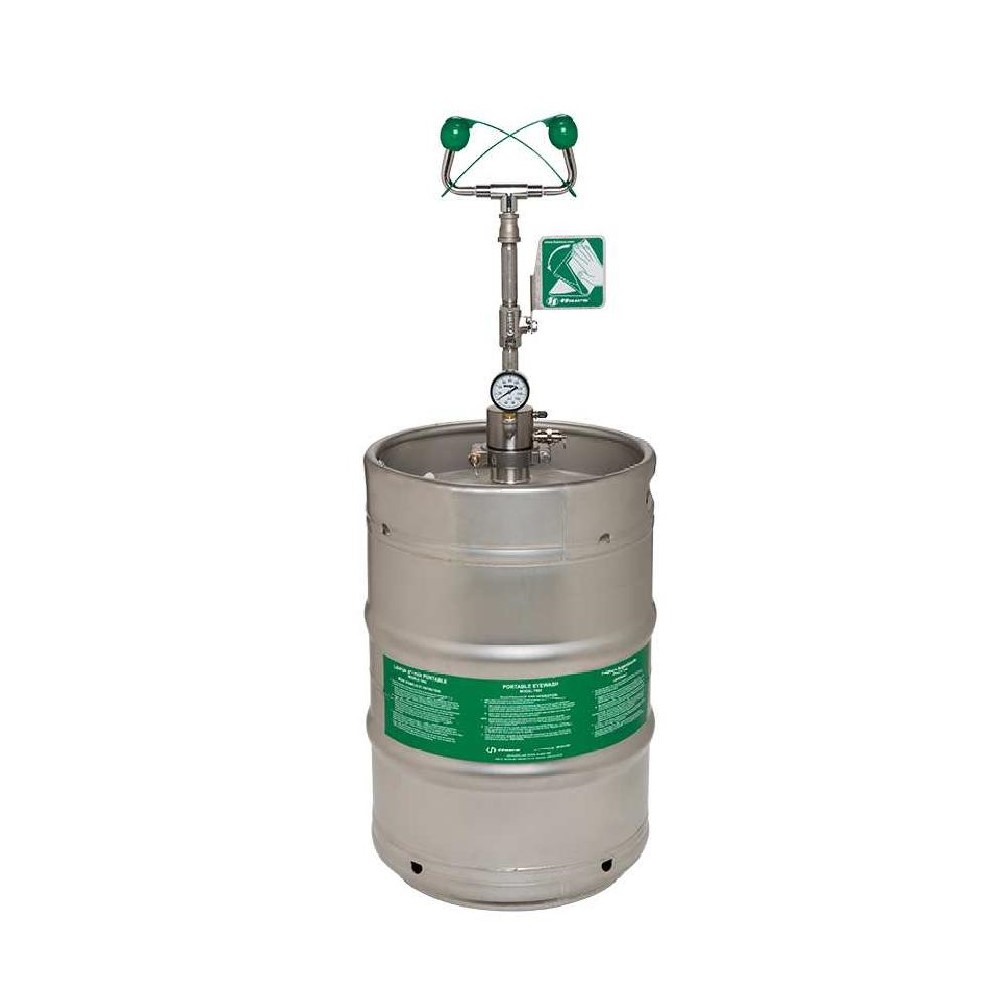

Model 7603: Portable Air-Pressurized Emergency Eyewash


The Haws 7603 is an ideal, cost-efficient solution for a facility's ANSI eyewash requirements in locations without access to a continuous potable water source. The pressurized 15 gallon (56.8 L) personal portable eyewash provides a reliable source of safety for the irrigation process.
  • Features a 15 gallon (56.8 L) stainless steel tank
  • Upgraded ball valves with stainless steel ball and stem
  • Protective measures include: air pressure gauge, pressure relief valve, and tire-type air fill valve
  • Measurements: 39-1/2" (100.3 cm) high, 16" (40.6 cm) diameter
Certified by CSA to meet the ANSI Z358.1 Standard for Emergency Eyewash and Shower Equipment.

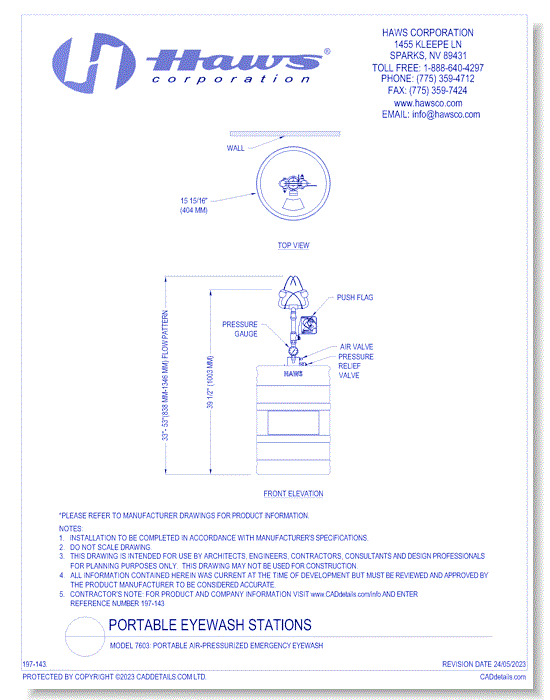

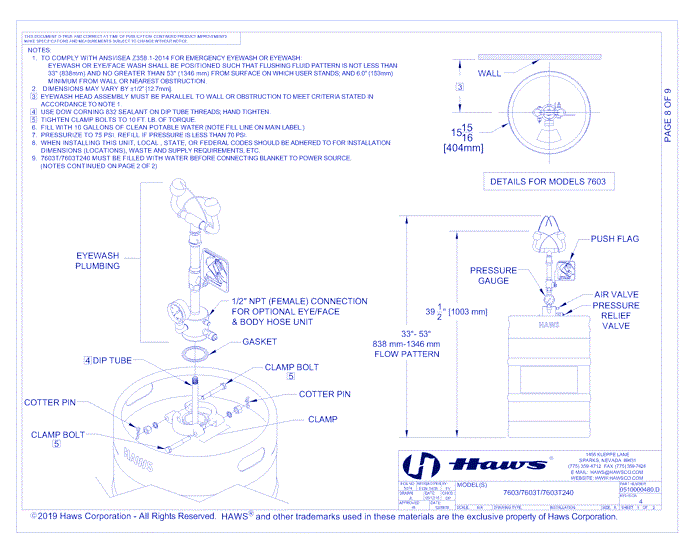

CAD Drawings Haws Corporation Model 7603: Portable Air-Pressurized Emergency Eyewash
