Haws Corporation

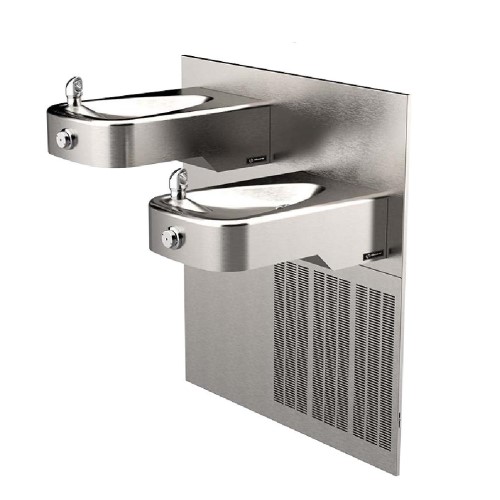

Model H1117LN.8: ADA Low Profile Dual Chilled Wall-Mount Fountain


The Haws H1117LN.8 ADA Hi-Lo chilled drinking fountain uses patented stainless steel, push-button activated, valve assemblies allowing for front access stream adjustment as well as cartridge and strainer access. This wall mounted fountain offers the 'only' all stainless-steel valve body that is machined out of solid bar stock, is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and has front access to the water stream height adjustment for easy maintenance without having to remove the valve.
  • 100% lead free waterways
  • Maintenance is made easy with front access to valve adjustment and cartridge replacement
  • Beautiful satin finish resists stains and corrosion
  • 14 gauge Type 304 Stainless Steel design provides a well-constructed sturdy fountain
  • Soft rounded corners prevent from mishaps and other accidents that may occur once the fountain is installed
  • One-piece stamped bowls with low-profile basin make for an aesthetically pleasing and durable design
  • To add a bottle filler, order models 1920 and BP32. For this fountain with bottle filler spec sheet, see below in Resources.
Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act and Child ADA. Haws manufactures drinking fountains and electric water coolers to be lead-free by all known definitions including NSF/ANSI Standard 61, Section 9, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006).
CAD Drawings Haws Corporation Model H1117LN.8: ADA Low Profile Dual Chilled Wall-Mount Fountain

Listing Back To Top

Design Visualizer

Design Visualizer

Model H1117LN.8/H1117LN.8HO: ADA Low Profile Dual Chilled Wall-Mounted/Touchless Fountain
Model H1117LN.8/H1117LN.8HO: ADA Low Profile Dual Chilled Wall-Mounted/Touchless Fountain

Downloads

Architectural Product Information

About Specs Media

CAD Toolbar

CADdetails™
PDF DWF DWG Printable CAD VWX DXF
Manufacturer DWG
MFG PDF MFG DWF MFG DWG MFG Printable CAD MFG VWX MFG DXF
