Haws Corporation

Model 7501T: Tempered, Gravity-Fed, Portable Eyewash

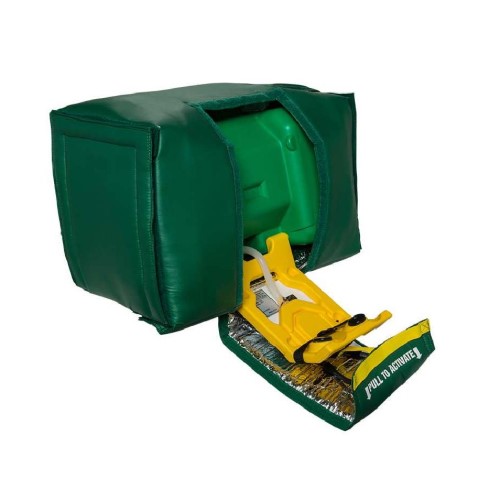

The newly retooled Haws 7501T compact portable tempered eyewash ideal for remote locations. The 9-gallon (34 L), gravity-fed, eyewash uses a heated, insulated blanket to provide ANSI compliant tempered potable water in operating temperatures between -20° F (-30° C) and 100° F (38° C) for locations without access to a continuous potable water source. 120VAC, 60Hz, 1.38A electrical requirement with supplied 8' power cord. This unit is a cost-effective solution ideal for locations without access to potable water, including temporary decontamination sites, temporary treatment facilities, and short-term job sites. Product enhancements include:
  • FDA approved high-density green polyethylene tank that is easily activated by pulling the yellow activation arm down to the open position
  • A wide-fill opening with a securely threaded cap, and a pronounced "Max Fill" line that permits easy inspection, cleaning and filling
  • Ease of relocation due to "Lift Here" graphics, easily mounted bracket (included) and light design
  • Measurements: 16" high, 24" wide, 12" deep (36.8 x 55.9 x 25.7 cm). *Note: Unit must be wall hung
CSA certified for NEMA/Type 3R in ordinary locations, and to ANSI/ISEA Z358.1 Standard for Emergency Eyewash and Shower Equipment, which is clearly called out on the exterior of the unit.

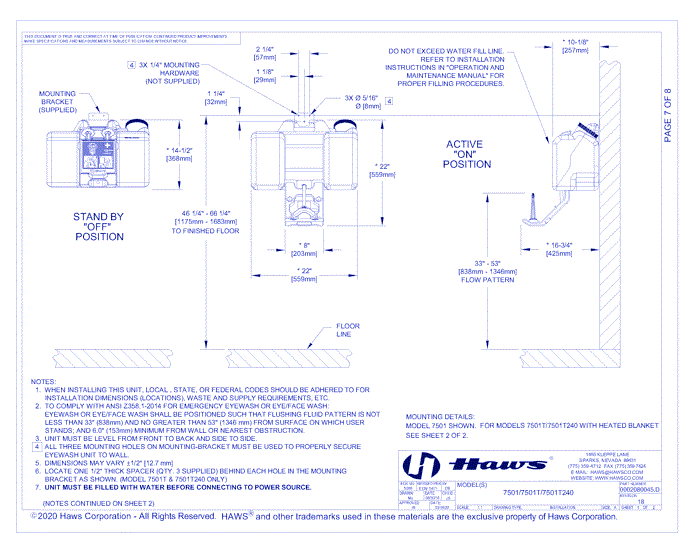

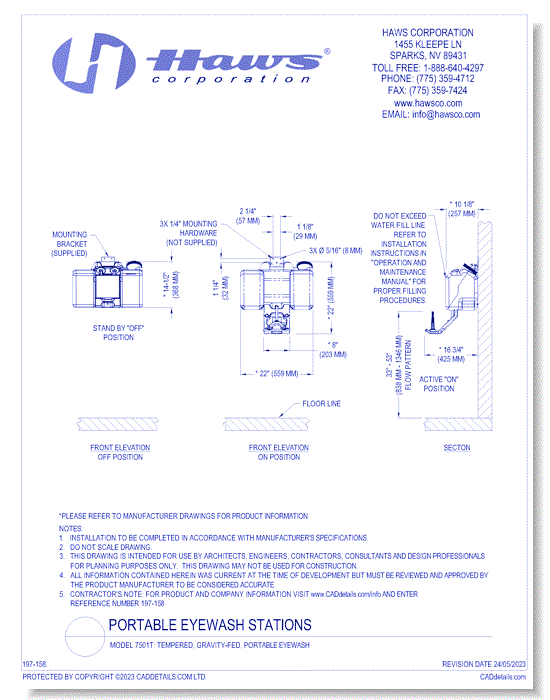

CAD Drawings Haws Corporation Model 7501T: Tempered, Gravity-Fed, Portable Eyewash
