Haws Corporation

Model 7656WCSM: AXION® MSR Wheelchair Accessible Surface Mount Eye/Face Wash


Model 7656WCSM wheelchair accessible eye/face wash features the medically acclaimed AXION MSR eye/face wash head assembly (patent pending). The revolutionary inverted flow design is the only product on the market that provides a Medically Superior Response consistent with all EMT, emergency room and doctors' office protocols by sweeping contaminants away from the vulnerable nasal cavity. Traditional eyewashes irrigate from the outside edge of the eye back toward the nose, where contaminants can then be flushed into the nasal cavity through the lacrimal punctum, nature's ocular cavity drain.
  • Perfect for mounting on block or solid walls which cannot be cut into
  • Eye/face wash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
  • The hide-away design allows the 7656WCSM to stay protected from debris when not in use
  • 18 Gauge Type 304 Stainless Steel recessed cabinet is a deep-drawn heavy duty structure with smudge resistant bead blast finish
  • Easy access exterior mounted in-line strainer
  • One piece drain tray catches waste fluid during eyewash use
  • The eye/face wash head is easily activated by the emergency equipment's pull-down design
  • ANSI Z358.1 tempering compliance options
Certified by CSA to meet the ANSI Z358.1 Standard for Emergency Eyewash and Shower Equipment.

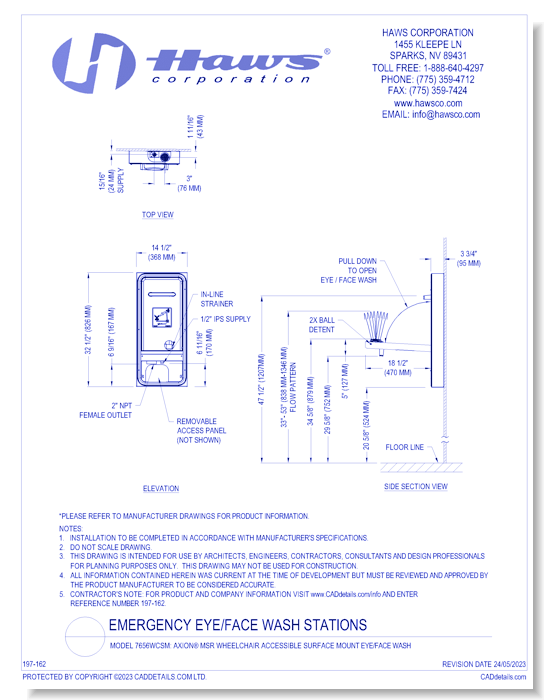

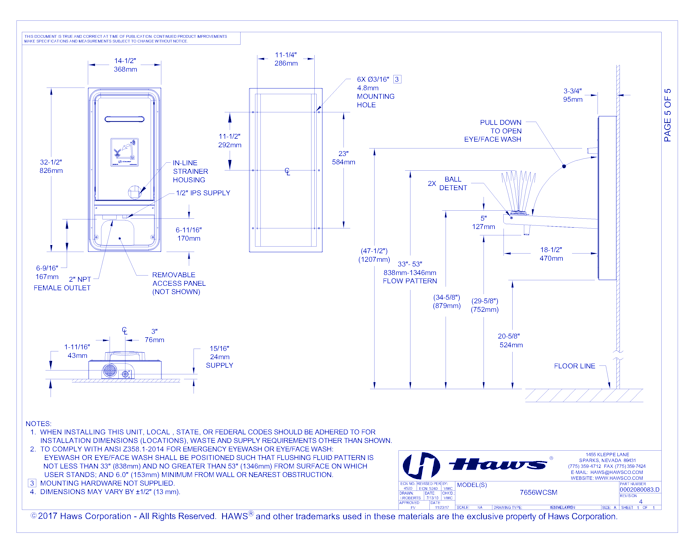

CAD Drawings Haws Corporation Model 7656WCSM: AXION® MSR Wheelchair Accessible Surface Mount Eye/Face Wash
