Haws Corporation

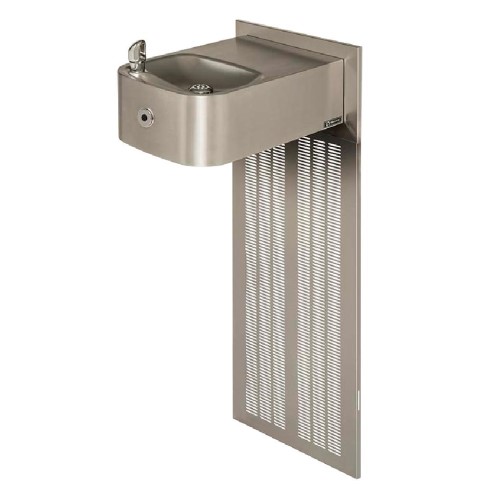

Model H1109.8HO: Chilled Wall Mount ADA Touchless Fountain


The Haws H1109.8HO ADA electric drinking fountain provides 8 gph (30.3 L) chilled water performance in an engineered stainless-steel skin. This wall mounted fountain incorporates a touchless sensor operated stainless steel solenoid valve controlled by a transformer for hands-free operation. A pressure regulator is used to adjust the bubbler flow according to incoming water pressures.
  • Touchless operation for safety and peace of mind
  • 100% lead-free waterways
  • 18 gauge Type 304 Stainless Steel design provides a well constructed sturdy fountain
  • Grille slots are designed to eliminate sharp edges and are backed with a foam filter to protect the fan motor and high displacement compressor from debris
  • Beautiful satin finish resists stains and corrosion
  • Polished chrome-plated brass vandal-resistant bubbler head with integral laminar anti-squirt flow eliminate water splash
  • One-piece stamped bowl makes for an aesthetically pleasing and durable design
Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains and electric water coolers to be lead-free by all known definitions including NSF/ANSI Standard 61, Section 9, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006).

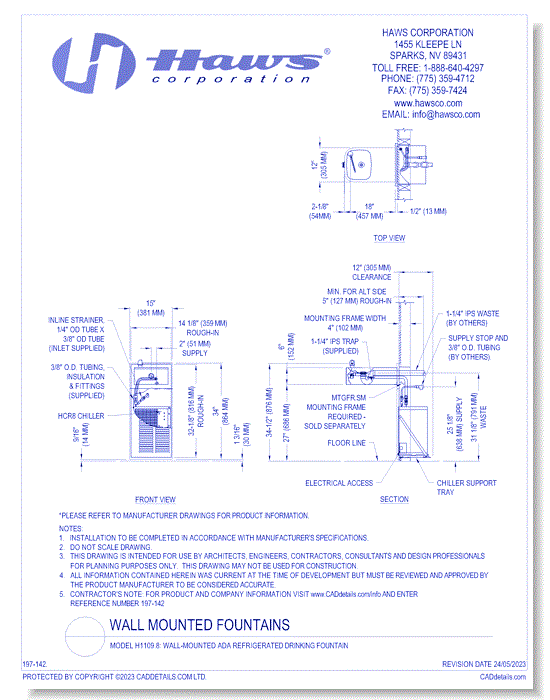

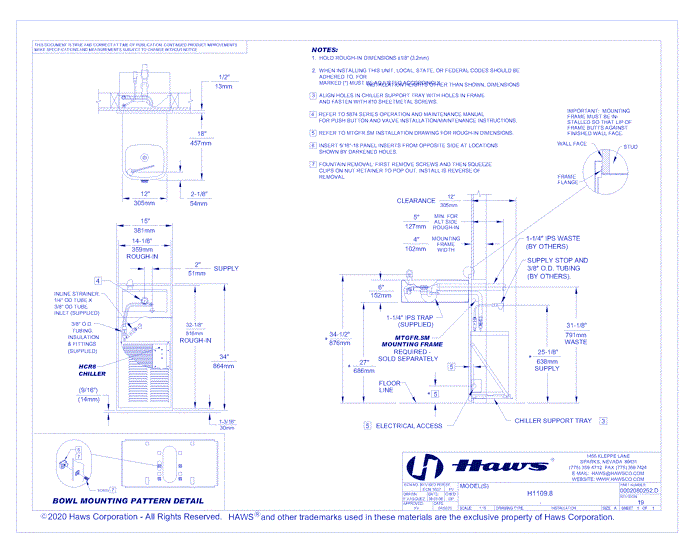

CAD Drawings Haws Corporation Model H1109.8HO: Chilled Wall Mount ADA Touchless Fountain

Listing Back To Top

Design Visualizer

Design Visualizer

Model H1109.8/H1109.8HO: Barrier-Free Chilled Wall-Mounted/Touchless Fountain
Model H1109.8/H1109.8HO: Barrier-Free Chilled Wall-Mounted/Touchless Fountain

Downloads

Architectural Product Information

About Specs Media

CAD Toolbar

CADdetails™
PDF DWF DWG Printable CAD VWX DXF
Manufacturer DWG
MFG PDF MFG DWF MFG DWG MFG Printable CAD MFG VWX MFG DXF
