Haws Corporation

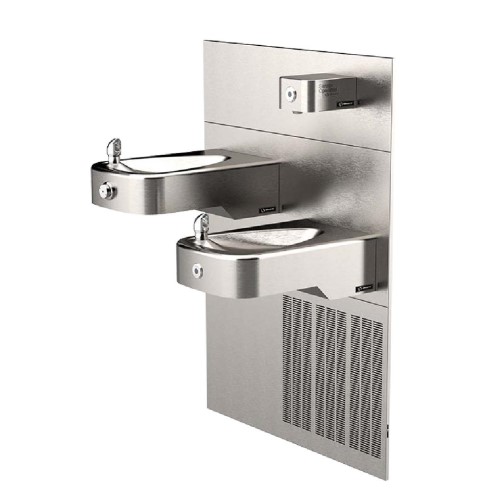

H1117LN.8HO: ADA Low Profile Dual Chilled Wall-Mount Touchless/Push Button Fountain w/Bottle Filler


The Haws H1117LN.8HO-1920HO ADA Hi-Lo chilled combination touchless/push button drinking fountain and bottle filler incorporates touchless sensor operated stainless steel solenoid valves controlled by transformers for hands-free operation with the bottle filler and on one side of the fountain, and offers the ‘only’ all stainless-steel valve body that is machined out of solid bar stock on the other. It is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer and has front access to the water stream height adjustment for easy maintenance without having to remove the valve.
  • 100% lead free waterways
  • Touchless operation on one side for safety and peace of mind
  • 1 gpm (3.78 L) bottle filler laminar flow
  • Maintenance is made easy with front access to valve adjustment and cartridge replacement
  • Beautiful satin finish resists stains and corrosion
  • 14 gauge Type 304 Stainless Steel design provides a well-constructed sturdy fountain
  • Soft rounded corners prevent from mishaps and other accidents that may occur once the fountain is installed
  • One-piece stamped bowls with low-profile basin make for an aesthetically pleasing and durable design
Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act and Child ADA. Haws manufactures drinking fountains and electric water coolers to be lead-free by all known definitions including NSF/ANSI Standard 61, Section 9, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006).

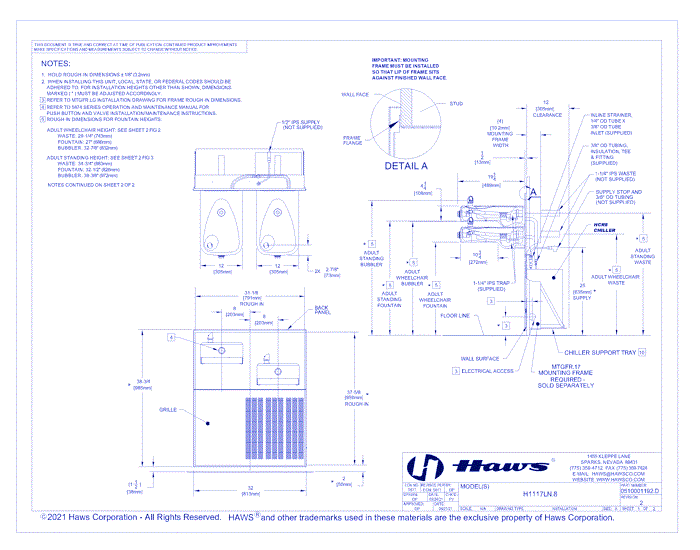

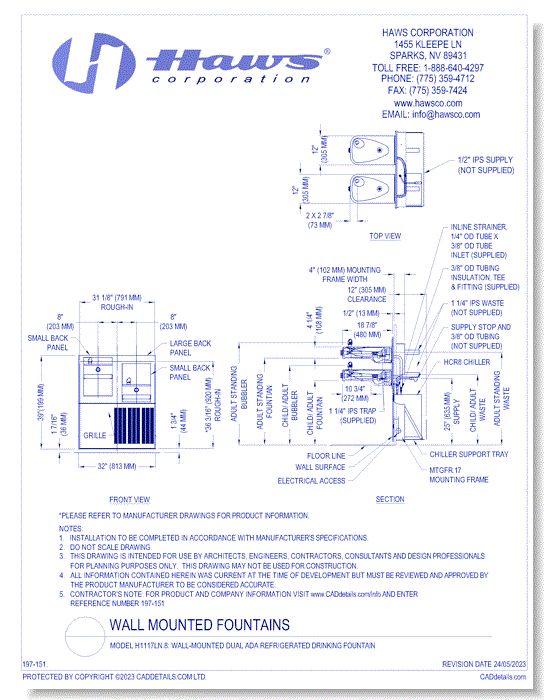

CAD Drawings Haws Corporation H1117LN.8HO: ADA Low Profile Dual Chilled Wall-Mount Touchless/Push Button Fountain w/Bottle Filler
