EnvyLawn (Manufactured By Challenger Turf)

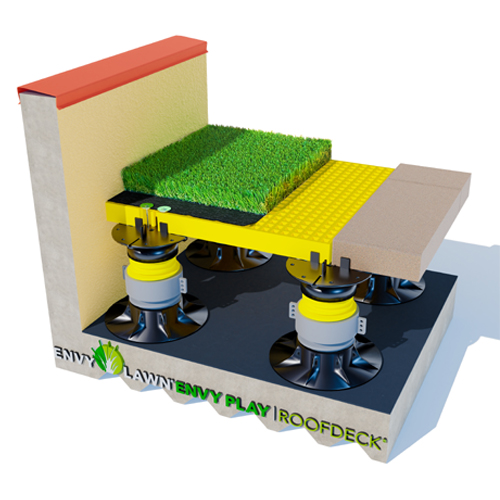

Rooftop Installation: Pedestal Detail


EnvyLawn Full-Color PDF detail sheets contain multiple layered details to accommodate each optional installation method. These various detail options can be selected via the Adobe Acrobat layers panel within the same detail sheet. These details are CAD-ready and can be imported directly into your CAD software and are available for download via the Media Icon below. The preformatted, CAD software specific 2D details can be downloaded by clicking the respective software icon.

Detail text in BLUE requires materials and/or depths to be specified by the designer. We recommend reaching out to your local distributor via this link: https://www.envylawn.com/locations/
CAD Drawings EnvyLawn (Manufactured By Challenger Turf) Rooftop Installation: Pedestal Detail

Listing Back To Top

Design Visualizer

Design Visualizer

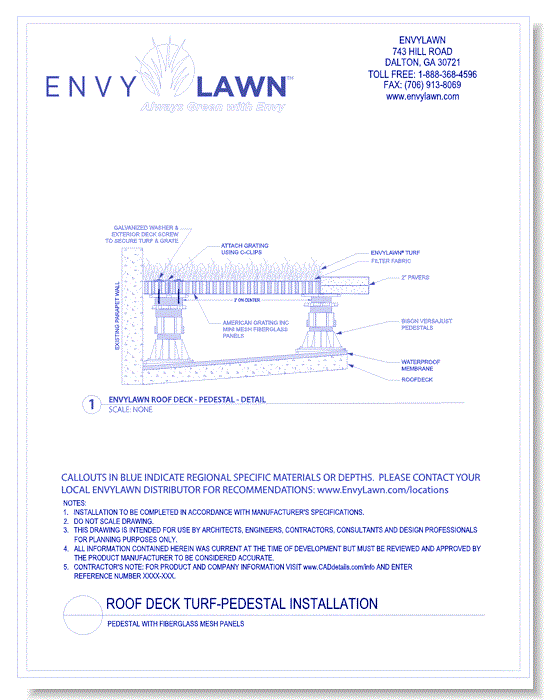

Installation Detail - Deck Pedestal Detail
