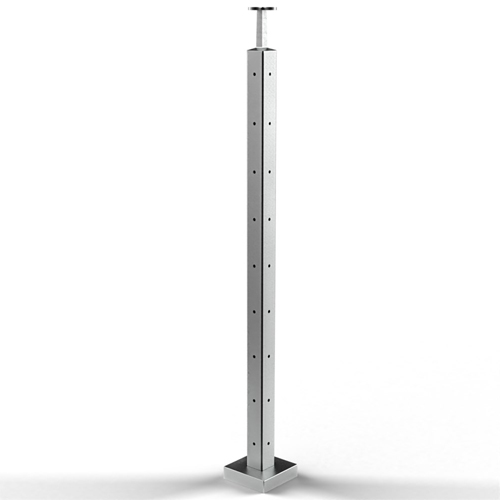

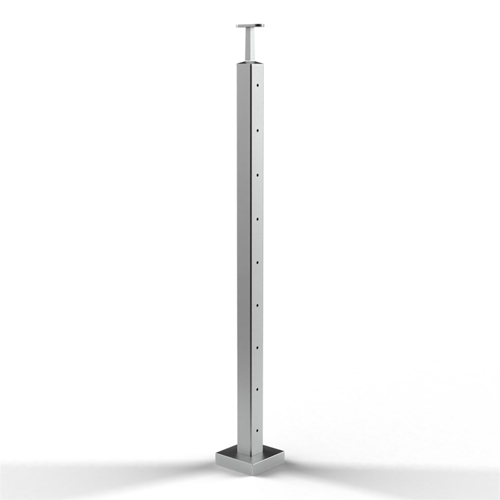

36" Square Posts
36" Standard height from finished floor to top of handrail.
Each prefabricated post includes pre-drilled holes for the cable, a welded flange, a flange canopy and a top saddle (stair post saddle is adjustable).
All posts are made with 316 grade stainless steel and have a satin (brushed) finish.
All post holes are drilled to fit with 232 and 224 series cables.
End Post: Post has a thicker 0.14" Wall. Place at the beginning/end of a railing.
Stair End Post: Post has a thicker 0.14" Wall. Holes are drilled at a standard 34º angle. Place at the beginning/end of a stair railing.
Center Post: Post has a 0.08" Wall. Place between end posts.
Stair Center Post: Post has a 0.08" Wall. Holes are drilled at a standard 34º angle. Place between end posts.
Corner Post: Post has thicker 0.14" Wall. Corner Post is fabricated with two 90 degree drilled holes permitting the use of a single post corner instead of a double post corner. Contact a representative for more details.
1.
36" Square Center Post Floor Mount
2.
36" Square End Post Floor Mount
3.
36" Square Stair End Post Floor Mount
4.
36" Square Corner Post Floor Mount
5.
36" Square Stair Center Post Floor Mount
