Iron Age Designs

Curb Inlet / Bioswale System

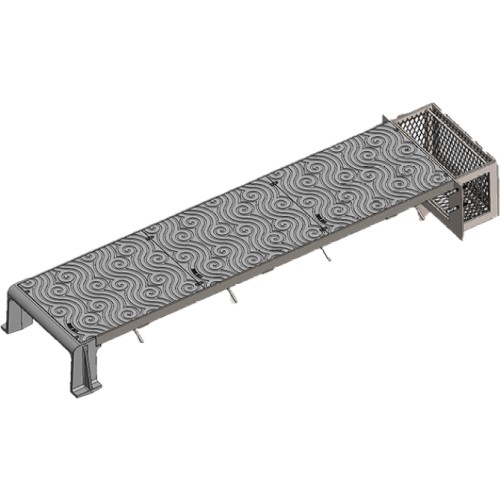

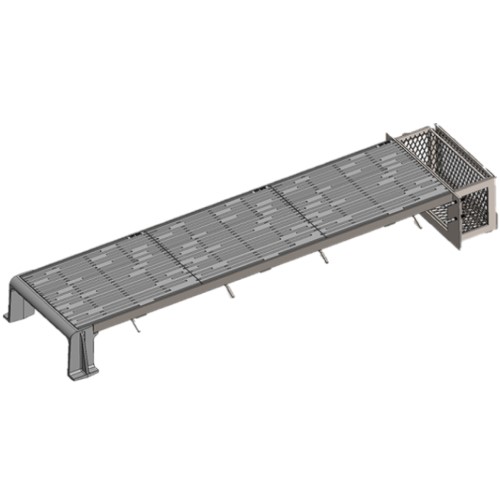

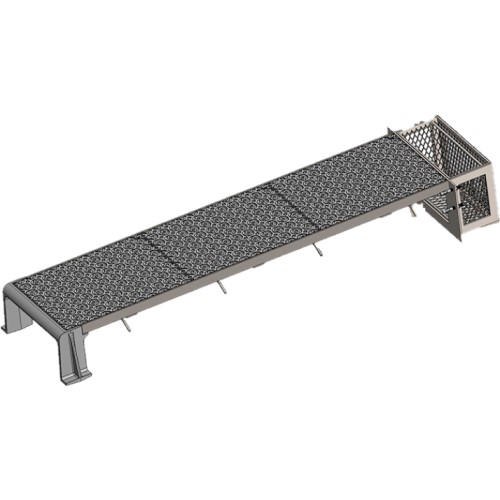

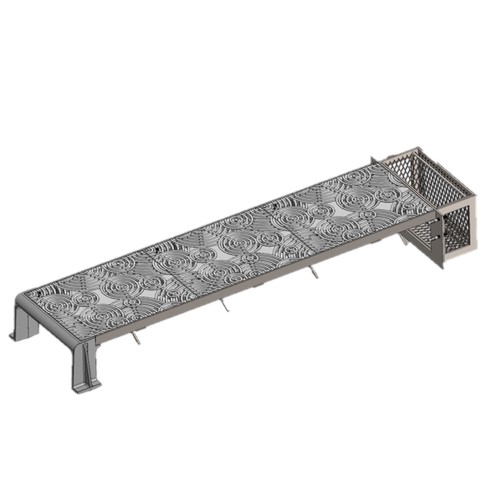

We designed a cast iron curb inlet to interface with our standard steel trench frames. The frames cut across the sidewalk, while our 18″ grates cover the open runnel where water flows from the street into a bioswale on the other side. An optional receptacle end prevents litter from entering the retention pit.
CAD Drawings Iron Age Designs Curb Inlet / Bioswale System
CAD Drawings Iron Age Designs Curb Inlet / Bioswale System
CAD Drawings Iron Age Designs Curb Inlet / Bioswale System
CAD Drawings Iron Age Designs Curb Inlet / Bioswale System
