IPE Lock-Disk

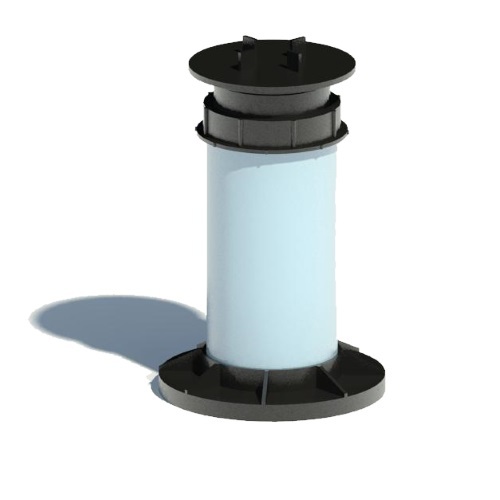

Pedestal Components: The “press fit” connection of the top and bottom cap to the PVC pipe requires no gluing or other attachments. Both the wedge top shims and round bottom shims can be used for “fine tuning” proper height if required. All top shims and bottom shims lock into place, and all six pieces (if used) interlock, allowing no paver movement and a level surface. The round bottom shims have a unique “V” groove, which allows them to be scored & broken in half with a utility knife and stacked on the bottom for those areas that are sloped more than 2%. They lock to each other and to the bottom cap to impede movement of the pedestal. The subsequent weight of the paver will keep the system in place. The caps can be easily removed during installation if desired.
1.

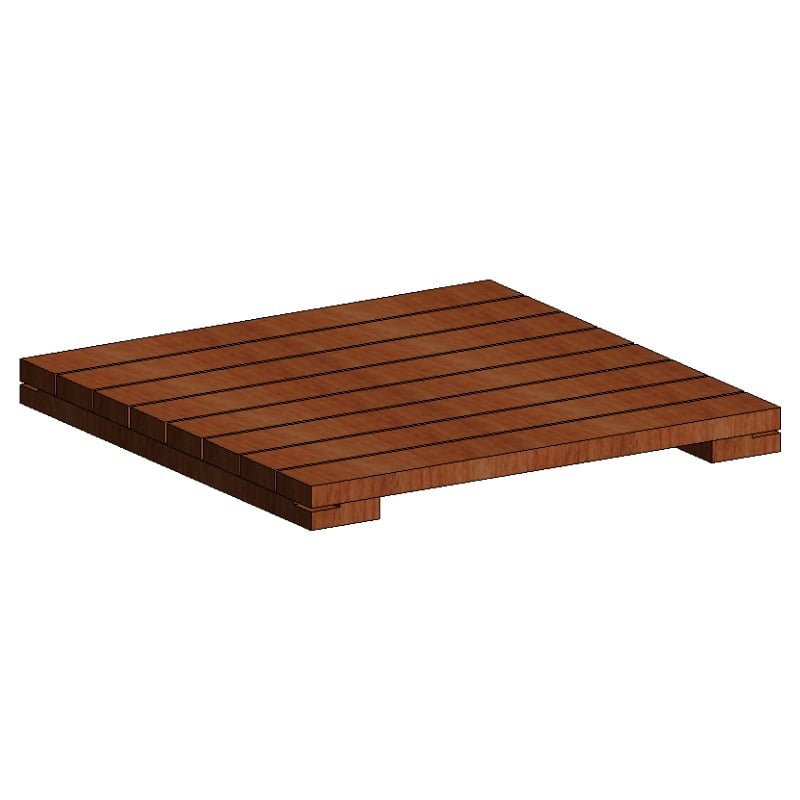

IPE Wood Tiles Details: 20" x 20" x 1-1/2"
2.
WIND-LOC™ Paver & Pedestal Application: Paver Lock Down System Details, Plan and Profile View
3.
STAK-CAP™ Pedestal Instructions: Installation Instructions - 1/2" to 12" High & 0%-3% Slope
4.
HEX-TRAY™ Porcelain Paver Tray: Wind-Uplift & Snow Melt
5.
Step-Down Pedestal Application: Section Details
6.
IPE Wood Tiles Details: 24" x 24" x 1-5/8"
7.
Adjustable Pedestals: Hybrid Pedestals™ UNI-ADJUST™/ Multi-Height (2" to 36")
8.
UNI-JUST™ Pedestal Instructions: Component Assembly Instructions
9.
Tile Tech Pedestal System: Complete Product Line
10.
UNI-JUST™ Pedestal System: Height Adjustment From 2-1/4" To 22" & Slope Adjustment From 0% TO 6%
11.
STAK-CAP™ Pedestal System: Height Adjustment From 1/2" TO 6" Slope Adjustment From 0% To 5%
12.
Adjustable Pedestals: Hybrid Pedestals™ STAK-CAP™ / Low-Height (1/2" to 2")
13.
UNI-SHIM™ Application: 1/8" & 1/16" Rigid Shims Used On Top And Under Pedestal
14.
Joist Deck & Pedestal Application: Joist Deck Installation Details & Spanning Chart
15.
Sample Deck Layout: Overview of Pedestal Placement
16.
Wood Tile & Pedestal Application: Transition, Alignment & Lock Down Details
17.
Sample Initial Installation: Using "T" Shaped Pattern
18.
Threshold Pedestal Application: Enlarged Plan View & Section Details
19.
Radius Pedestal Application: Enlarged Plan View & Section Details
20.
Corner Pedestal Application: Enlarged Plan View & Section Details
21.
Diagonal Perimeter Application: Enlarged Plan View & Section Details
22.
Drain Pedestal Application: Enlarged Plan View & Section Details
23.
Low Height Pedestal Application: Enlarged Plan View & Section Details
24.
Perimeter Edge Restraint Options: Metal Flashing & Wood Fascia Containment Details
25.
Perimeter Edge Restraint Options: Step Down & Green Roof Containment Details
26.
STAK-CAP™ and UNI-JUST™ Pedestals: Sample Pedestal Configuration & Combination Compensation From 1/2" to 22" High and 0% to 6% Slope
