Equiparc

EP 7070-DS

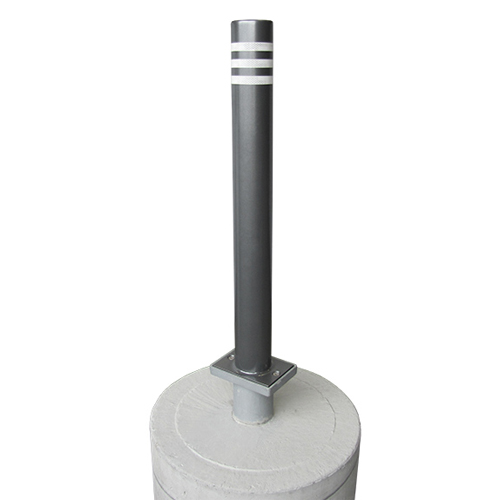

Bollard made of aluminum tubing (4″), painted. Muff made of hot dipped galvanized steel, embedded in the concrete base. Concrete base of 30 MPa with lifting handles, 24 ” dia. x 24″ height (930 lbs). Theft-proof stainless steel fasteners. This aluminum bollard is mechanically fixed to the concrete base.

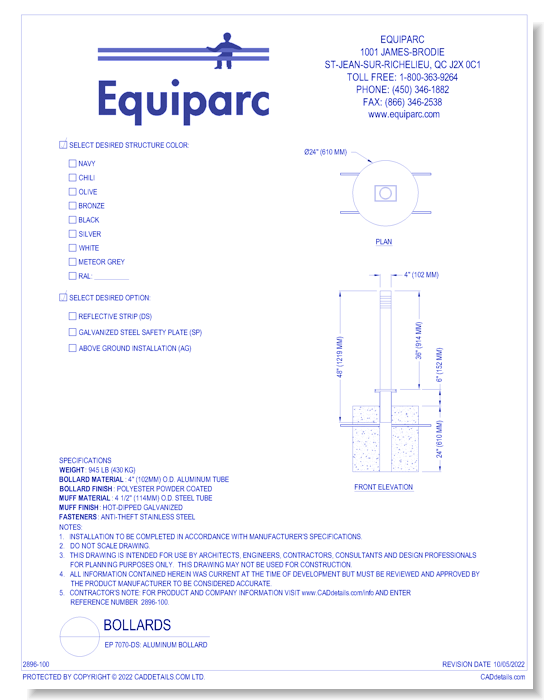

CAD Drawings BIM Models Equiparc EP 7070-DS

Listing Back To Top

Design Visualizer

Design Visualizer

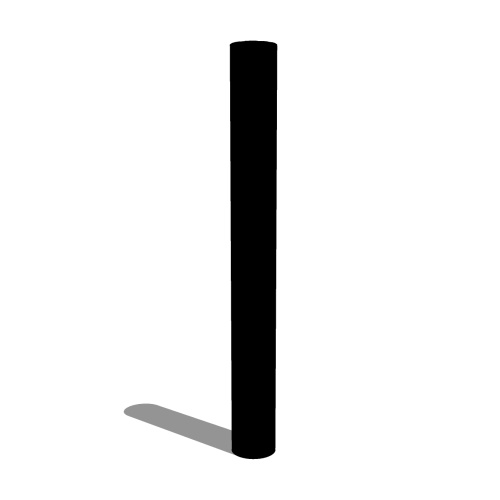

EP 7070-DS: Aluminum Bollard
EP 7070-DS: Aluminum Bollard
