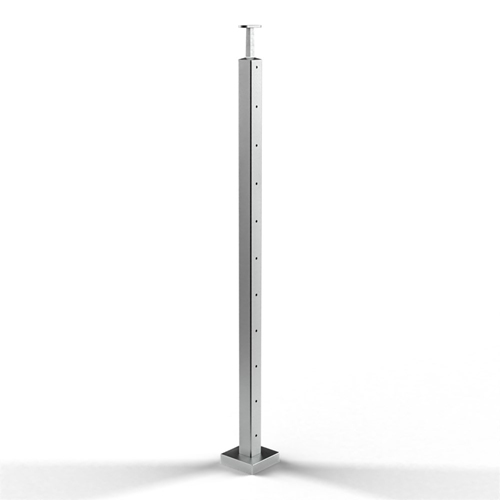

42" Square Posts


42" Standard height from finished floor to top of handrail.
Each prefabricated post includes pre-drilled holes for the cable, a welded flange, a flange canopy and a top saddle (stair post saddle is adjustable).

All posts are made with 316 grade stainless steel and have a satin (brushed) finish.
All post holes are drilled to fit with 232 and 224 series cables.

End Post:  Post has a thicker 0.14" Wall.  Place at the beginning/end of a railing.

Stair End Post:  Post has a thicker 0.14" Wall.  Holes are drilled at a standard 34º angle.  Place at the beginning/end of a stair railing.

Center Post:  Post has a 0.08" Wall.  Place between end posts.

Stair Center Post:  Post has a 0.08" Wall.  Holes are drilled at a standard 34º angle.  Place between end posts.

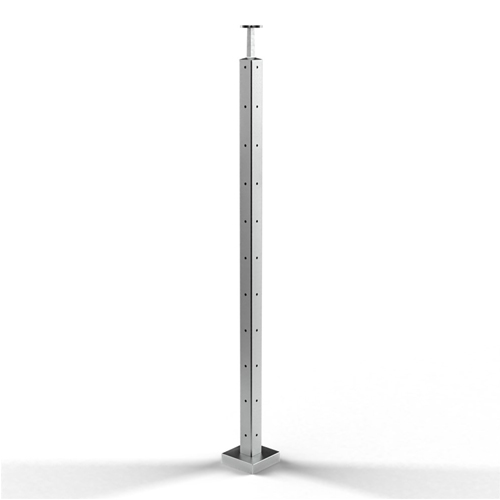

Corner Post:  Post has thicker 0.14" Wall.  Corner Post is fabricated with two 90 degree drilled holes permitting the use of a single post corner instead of a double post corner.  Contact a representative for more details.
