Classic Displays

H35 Bike Rack

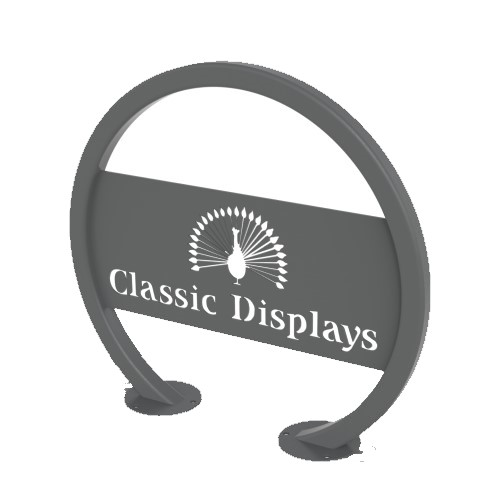

The H35 bike rack is a familiar horseshoe shaped closed loop bike rack, available in 3 pipe/tube sizes and 3 finishes. The H35 provides heightened security using Schedule 40 pipes for 1.9” and 2.38” sizes, while the 2” square tube offers enhanced security with a robust .188” wall thickness.

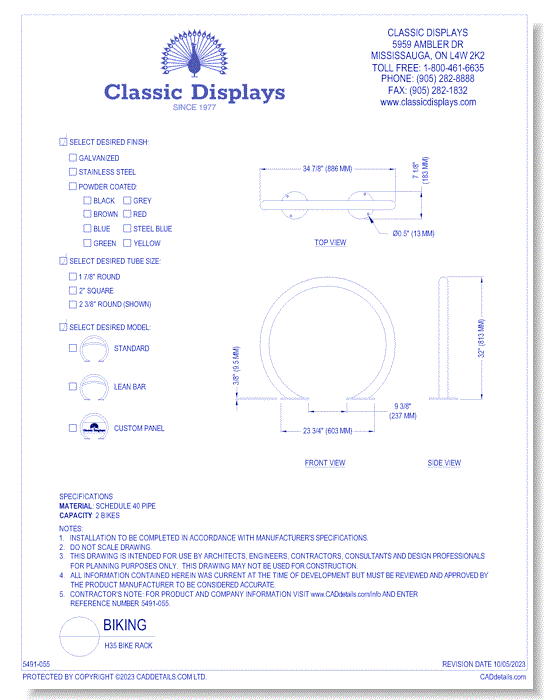

CAD Drawings Classic Displays H35 Bike Rack
CAD Drawings Classic Displays H35 Bike Rack CAD Drawings Classic Displays H35 Bike Rack CAD Drawings Classic Displays H35 Bike Rack CAD Drawings Classic Displays H35 Bike Rack
