Classic Displays

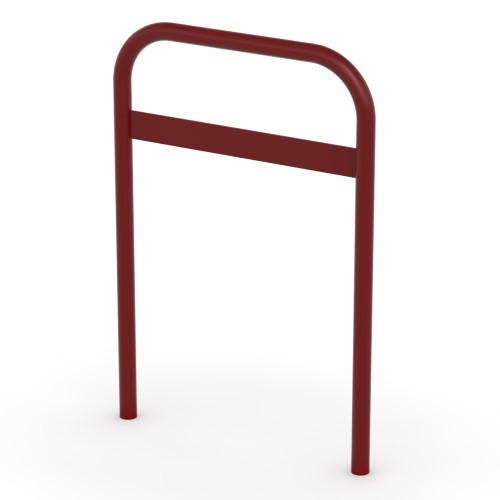

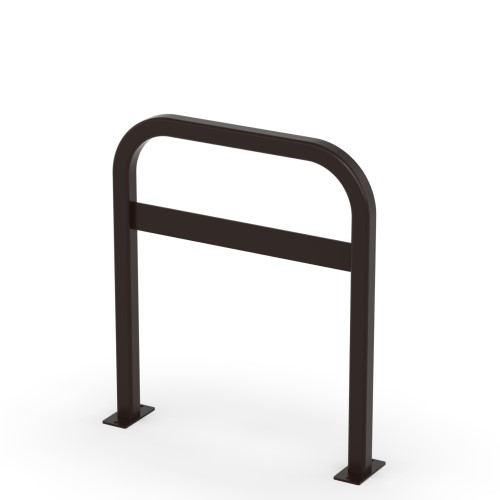

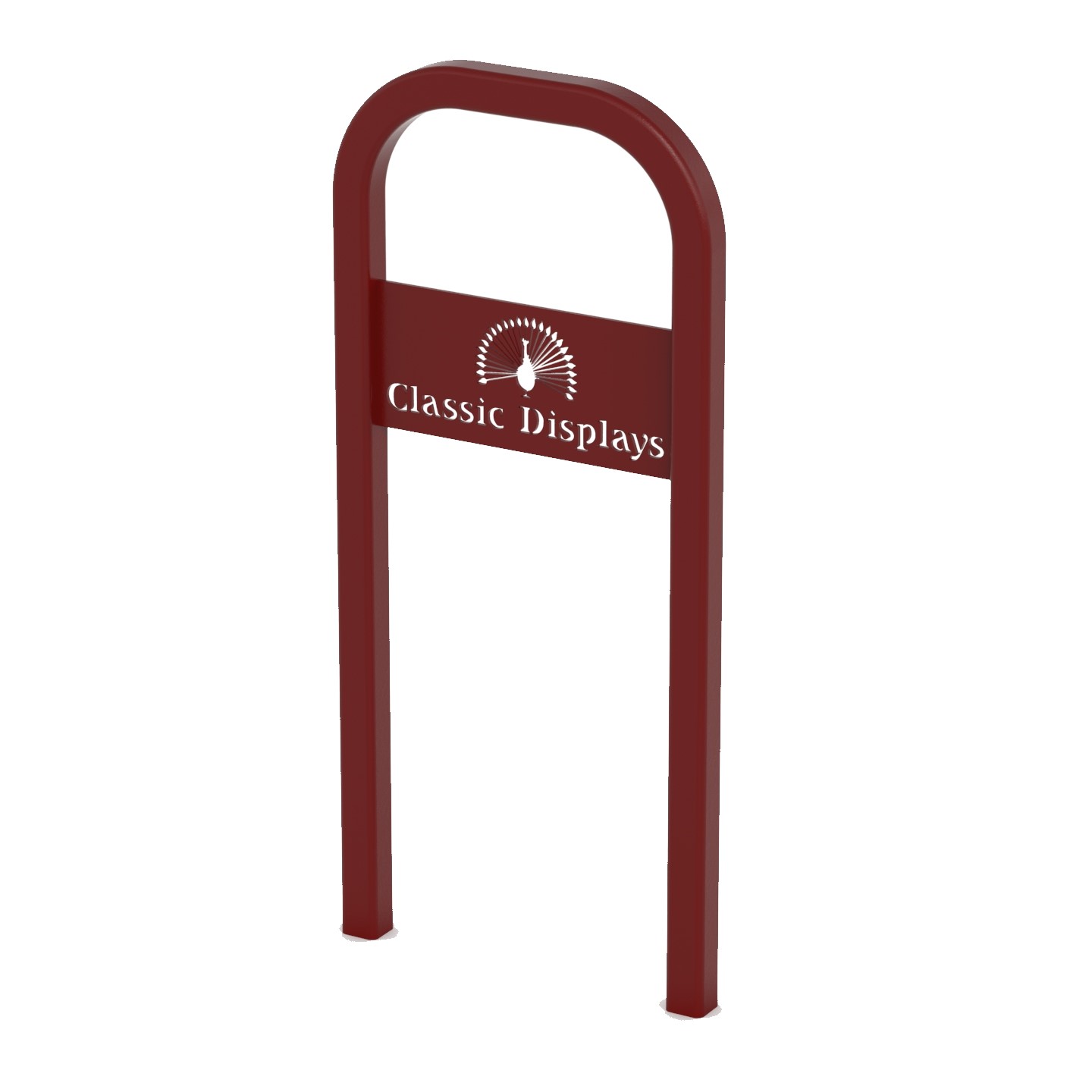

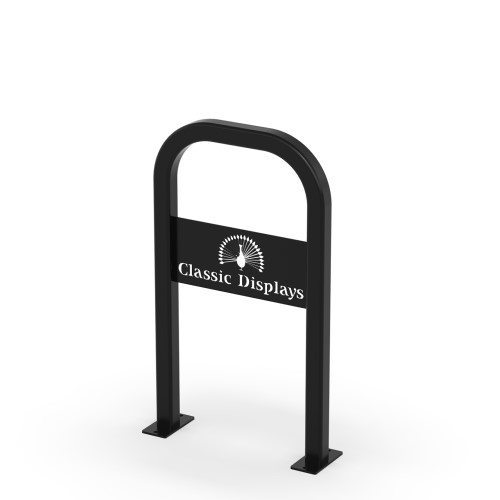

U20 Bike Rack


Classic Displays’ Bike Rack Rail System connects 2, 3, 4, or 5 bike racks together creating an instant Bike Corral for up to 10 bike parking spaces. Multiple rail systems can be installed side by side, providing a continuous and virtually unlimited line of bike parking spaces. The Rail System reduces the installation requirement when 4 or more bike parking spaces are required, allowing for multiple bike racks to be secured to rails instead of directly to the ground. This provides convenience during the installation process, while minimizing the number of holes needing to be drilled into the installation surface. The Rail System also allows for bike racks to be installed “free-standing” in locations where bolt-down application is not possible.

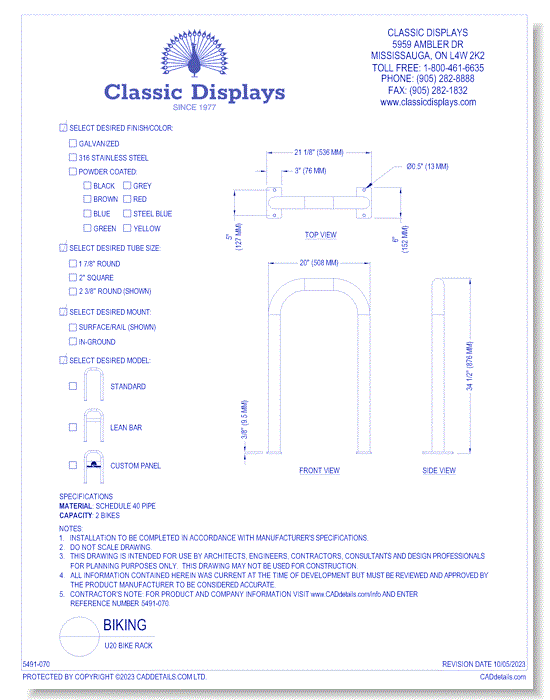

CAD Drawings Classic Displays U20 Bike Rack
CAD Drawings Classic Displays U20 Bike Rack CAD Drawings Classic Displays U20 Bike Rack CAD Drawings Classic Displays U20 Bike Rack CAD Drawings Classic Displays U20 Bike Rack
