U24 Bike Rack

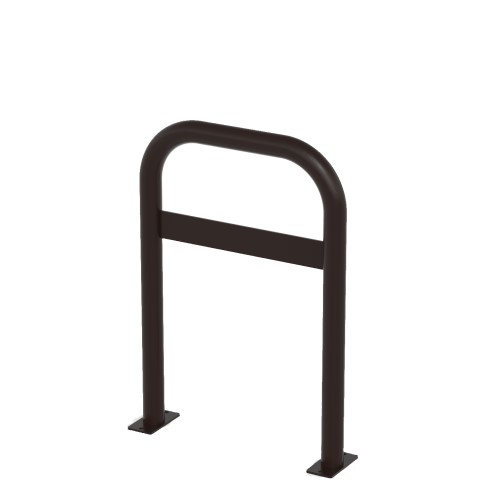

Available in 3 tube/pipe sizes, 3 finishes, and 3 mounting options, the U24 Rack is a simple, practical, and cost-effective bike parking solution for two bicycles. The U24 stands at 24” in width and 34.5” in height when surface mounted or mounted in-ground, topping at 35.7” in height when mounted to the versatile rail system.

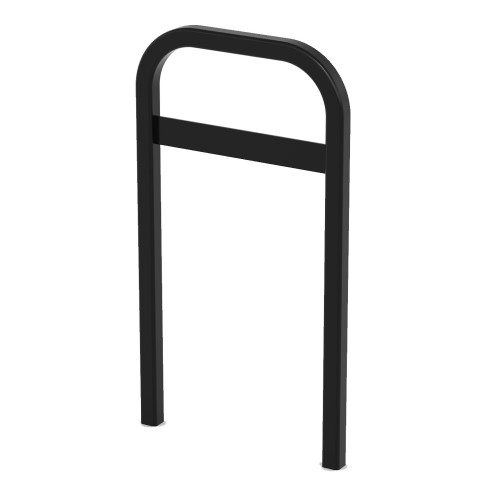

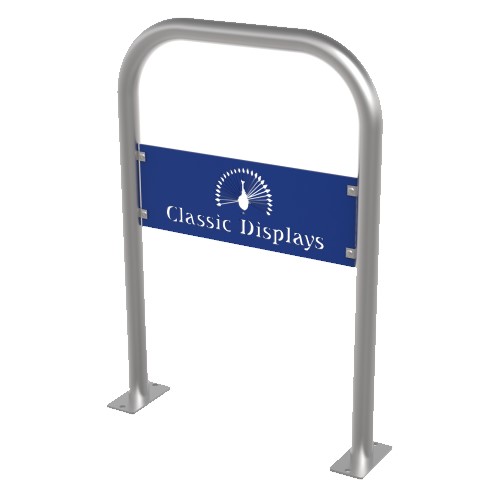

The U24 offers ample security using Schedule 40 pipe with both 1.9” and 2.38” diameter models, or select the 2” square tube with .188” wall thickness for added security. All pipe sizes are available in natural galvanized, powder coated, or marine grade 316 stainless steel finish. For added customization, a lean bar or a custom-cut laser panel is also available. The custom panel can be personalized with virtually any logo or message, with a custom coloured insert available upon request.

The simple design of the U24 allows bike parking areas to be created with virtually unlimited configurations, from a single free-standing rack, to a bike corral where 3-6 racks are connected to a rail system, or a high density/capacity interior or exterior bike parking area with a capacity for 100’s of bicycles.

The U24 meets APBP bike parking standards as an intuitive bike rack providing two points of contact with the frame, allowing a single U-lock to capture one wheel and one section of the bike frame. The U24 is also available in a smaller 20” width (see the U20), or a larger 30” width (see the U30).

CAD Drawings Classic Displays U24 Bike Rack
CAD Drawings Classic Displays U24 Bike Rack
CAD Drawings Classic Displays U24 Bike Rack
CAD Drawings Classic Displays U24 Bike Rack
