Forms+Surfaces

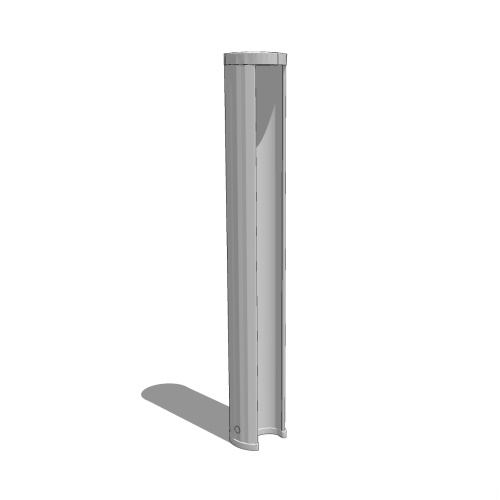

Radia Bollard, Hardwired and Solar


Radia Bollards are available in solar-powered and hardwired designs, each in its own unique size. Coordinating pathway bollards expand the family’s reach.
  • Base and top cap are powdercoated cast aluminum
  • Body is powdercoated extruded aluminum with a faceted exterior surface and smooth interior cove
  • Cove interior can be wet-coated white or powdercoated to match the body exterior
  • Cree® LEDs in 3000K warm white and 4000K neutral white

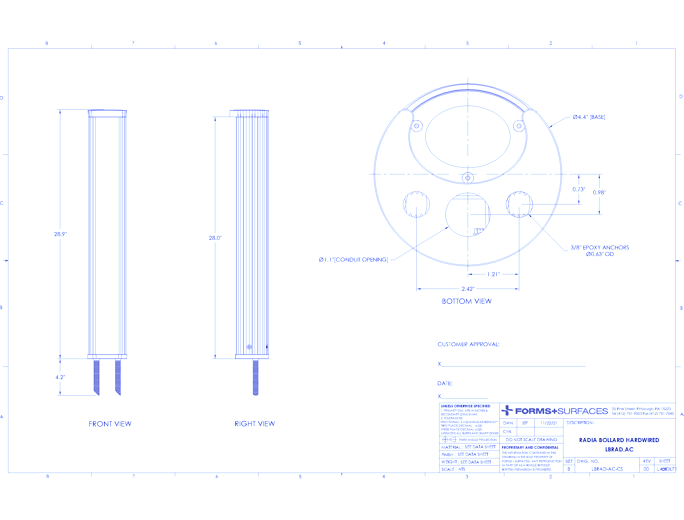

  • Solar bollard is 36.5" high x 6.8" diameter; hardwired bollard is 28.9" high x 4.4" diameter
  • Solar Lighting Controller (SLC) is self-learning with intelligent day/night detection
  • Solar module has high-efficiency monocrystalline cells encapsulated in high-impact UV-resistant polyurethane
  • Solar-powered bollard has a high-performance lithium ion phosphate battery
  • Hardwired bollards have a 9W LED driver, are dimmable, and ETL and C-ETL listed
  • High recycled content; highly recyclable
