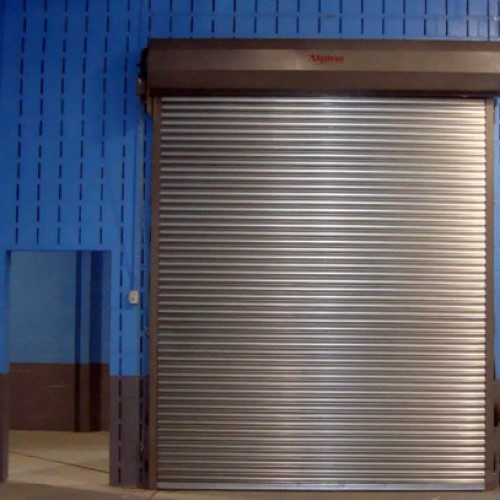

Fire-Tite®
Product Features:
- High quality rolling metal fire doors at a competitive price
- Optional internal flame baffle prevents infiltration through header
- Approved for roll down stainless steel fire doors
- Oversize UL label up to 56′x30′
- Overhead fire rated doors are built in accordance with requirements specified by Underwriters Laboratories Inc.
Functional Benefits:
- These doors provide access control and security protection under normal use and will close automatically in the event of a fire, serving as fire stopping to contain the spread of a fire
- Conventional design offers a push-up operation product, where Auto Fire-Tite® products do not (max. push-up dimension: 10’ft wide x 10’ft high)
- Hand Chain or Motor Operation available for larger sizes.
- Fire Doors activated only by 165º fusible link (Conventional) carry the lowest upfront cost available
- 3 hr Rating – 3 hour approved for doors in dividing fire walls
- 1-1/2 hr Rating – 1.5 hour approved for doors, in vertical shaft openings
- 3/4 hr Rating – 0.75 hour approved for doors in a corridor or a room-partition
- 4 Hour Rated (Optional) – Consult factory for more information
- Fire rated doors over 152 square feet will receive a Classified UL label marked “OVERSIZE ROLLING STEEL FIRE DOOR” that includes the hourly rating as well as the certification number
1.
Fire-Tite® Face Mounted to Masonry: Manual Push-Up Operation
2.
Fire-Tite® Face Mounted to Masonry: Hand Chain Operation
3.
Fire-Tite® Face Mounted to Masonry: Hand Crank Operation
4.
Fire-Tite® Face Mounted to Masonry: Motor Operation
5.
Fire-Tite® Face Mounted to Steel: Manual Push-Up Operation
6.
Fire-Tite® Face Mounted to Steel: Hand Chain Operation
7.
Fire-Tite® Face Mounted to Steel: Hand Crank Operation
8.
Fire-Tite® Face Mounted to Steel: Motor Operation
9.
Fire-Tite® Between Jamb Mounted (Packout): Manual Push-Up Operation
10.
Fire-Tite® Between Jamb Mounted (Packout): Hand Chain Operation
11.
Fire-Tite® Between Jamb Mounted (Packout): Hand Crank Operation
12.
Fire-Tite® Between Jamb Mounted (Packout): Motor Operation
13.
Fire-Tite® Between Tube Mounted: Manual Push-Up Operation
14.
Fire-Tite® Between Tube Mounted: Hand Chain Operation
15.
Fire-Tite® Between Tube Mounted: Hand Crank Operation
16.
Fire-Tite® Between Tube Mounted: Motor Operation
