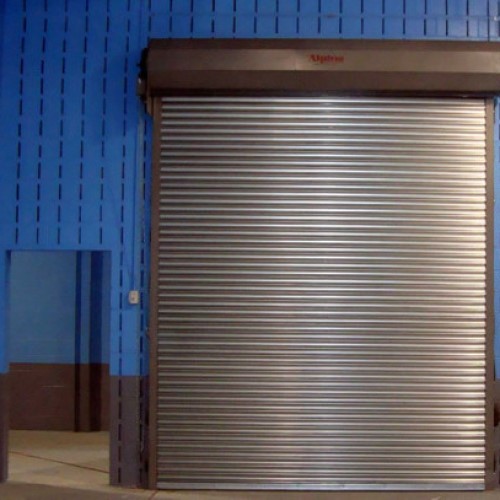

Auto Smoke Fire-Tite®
Product Features:
- High quality fire door designed to prevent the spread of smoke
- Perimeter smoke seals standard
- Approved for stainless steel fire doors
- Oversize UL label up to 56′ x 30′
- Built in accordance with the requirements specified by Underwriters Laboratories Inc.
Functional Benefits:
- These smoke sealed fire doors provide access control and security protection under normal use and will close automatically in the event of a fire serving as fire stopping to contain the spread of a fire and smoke
- Eliminates all mechanical fire gears on the brackets and the need to reset spring tension
- 3 hr Rating – 3 hour approved for doors in dividing fire walls
- 1-1/2 hr Rating – 1.5 hour approved for doors, in vertical shaft openings
- 3/4 hr Rating – 0.75 hour approved for doors in a corridor or a room-partition
- 4 Hour Rated (Optional) – Consult factory for more information
- Fire rated doors over 152 square feet will receive a Classified UL label marked “OVERSIZE ROLLING STEEL FIRE DOOR” that includes the hourly rating as well as the certification number
1.
Auto Smoke Fire-Tite® Face Mounted to Masonry: Hand Chain Operation
2.
Auto Smoke Fire-Tite® Face Mounted to Masonry: Hand Crank Operation
3.
Auto Smoke Fire-Tite® Face Mounted to Masonry: Motor Operation
4.
Auto Smoke Fire-Tite® Face Mounted to Steel: Hand Chain Operation
5.
Auto Smoke Fire-Tite® Face Mounted to Steel: Hand Crank Operation
6.
Auto Smoke Fire-Tite® Face Mounted to Steel: Motor Operation
7.
Auto Smoke Fire-Tite® Between Jamb Mounted (Packout): Hand Chain Operation
8.
Auto Smoke Fire-Tite® Between Jamb Mounted (Packout): Hand Crank Operation
9.
Auto Smoke Fire-Tite® Between Jamb Mounted (Packout): Motor Operation
10.
Auto Smoke Fire-Tite® Between Tube Mounted: Hand Chain Operation
11.
Auto Smoke Fire-Tite® Between Tube Mounted: Hand Crank Operation
12.
Auto Smoke Fire-Tite® Between Tube Mounted: Motor Operation
