Stellar by Heat & Glo

Open Hearth: Custom Solutions

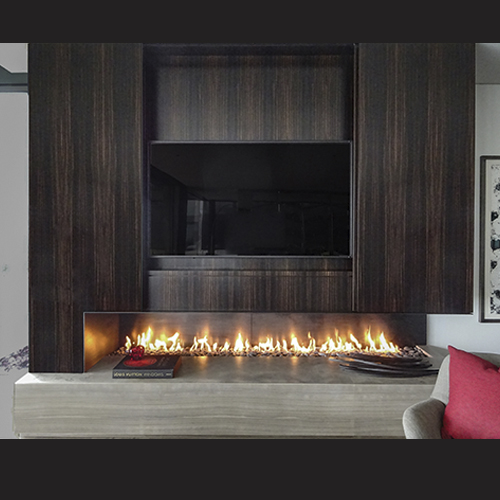

This dynamic design eliminates extra structural engineering and more complex installation required by masonry products and an unobstructed view of the beautiful flames.

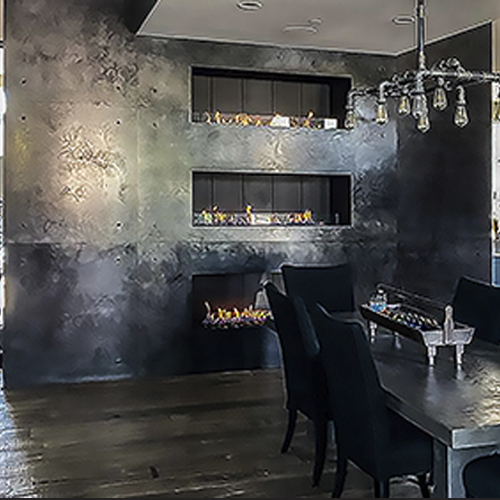

  • Available in indoor or outdoor designs in single sided, see through, bay, pier, corner left or right, island or round configurations
  • Modern and Traditional Interiors

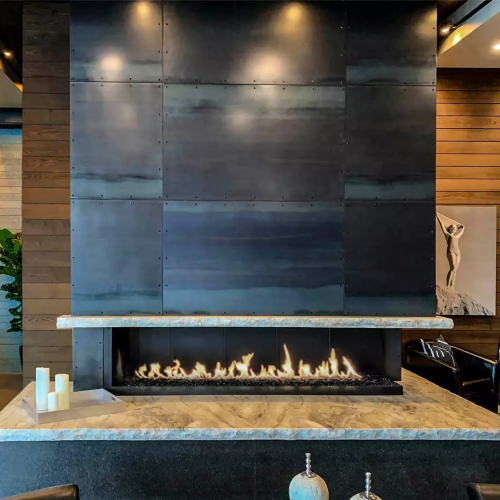

    -Modern Interior: 24” depth with ribbon burner
    -Traditional Interior: 30” depth with grate, oak log set and electric ember bed
    -20,000 BTU’s per ft – robust flames
  • Flush hearth designs available
  • Can bring non-combustible finishing materials right up to the fireplace opening for a true clean look
  • Combustible mantel can be placed 12” above the opening
  • Flexible venting to get around structural challenges. Vented with B-vent pipe with up to 11 elbows and 100’ feet runs. Can vent downward up to 6’
  • Minimal heat output for year-round comfort

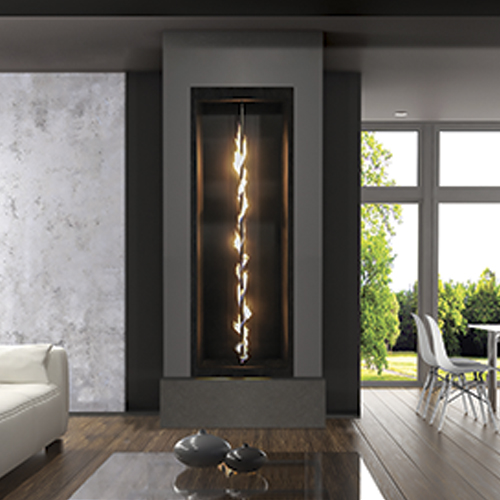

  • Customize interior with unique burners, mirror or Envision panels and driftwood log set
  • Can be custom designed with ledge to support field installed refractory liner and 3rd party gas log set
