M10 DRAIN


Roofingreen® M10 DRAIN is a modular, artificial turf tile system designed for direct installation on draining substrates.

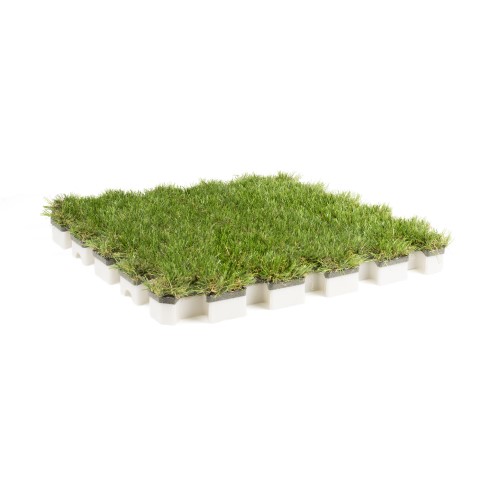

The panels are composed of a thermoplastic base structure, an intermediate foam layer and a surface of synthetic turf. The materials do not absorb humidity, whereas the presence of invisible drainage holes ensures the passage of surface water. By simply fitting together the dovetail shaped tiles an interlocking, homogeneous turf surface with a natural appearance and high degree of comfort is obtained. With a height of 1½ inch, electricity cables and LED footstep lighting can be integrated smoothly.

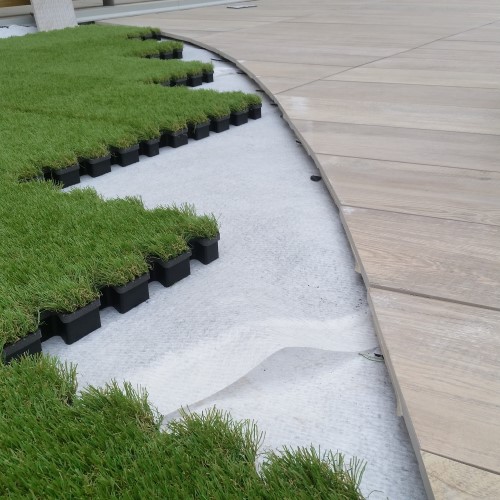

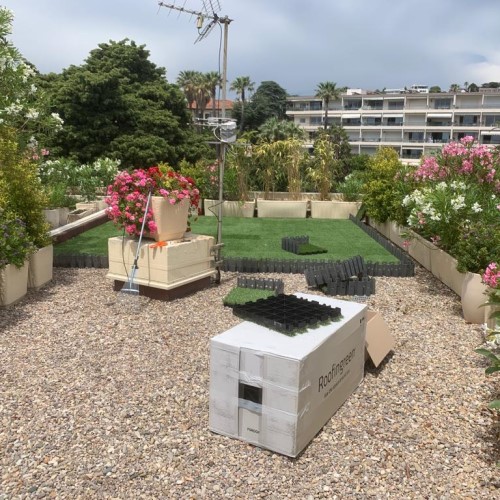

M10 DRAIN is particularly suited for installation on draining sub layers like gravel, stones, sand and compacted earth. Even when these layers have a degree of unevenness and slope, the tiles will absorb these irregularities and the resulting turf surface will be smooth and stable. Typical applications include gardens, pool areas, patios and courtyards, walkways, and public grounds.

The Roofingreen pavers are highly durable with an expected lifetime of fifteen years. The surface can be used all year around in a diverse range of climatic conditions (cold, wet, hot) thanks to the dimensional stability and excellent drainage properties, resulting in a dry and clean surface.

CAD Drawings Roofingreen M10 DRAIN
