Wall Mounted Green Face Wall/Trellis

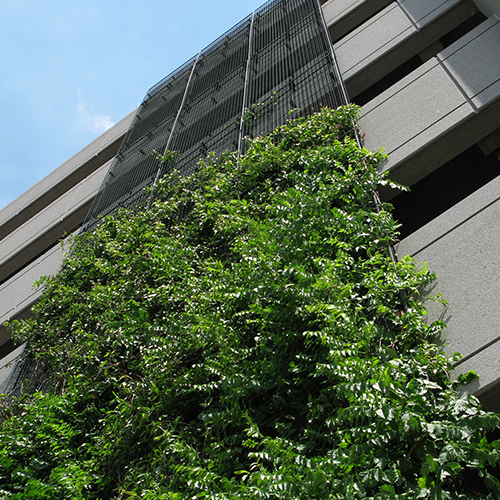

The greenscreen® trellis system can transform walls into soft textured, vine covered, seasonally changing surfaces commonly referred to as green “facades.” Our system of engineered mounting accessories is designed to hold greenscreen® trellis panels off the building surface, protecting the building’s waterproof membrane from direct plant attachment and transferring the weight of the plants to the screen structure and the wall. Panels can be stacked side to side or top to bottom to cover larger areas.
1.
Trellis: Vine Planting Detail - Wall Mounted Application
2.
Trellis Trim Connection (5104): Post Mounted Application, Plan View
3.
Trellis Trim Connection (5104): Wall Mounted Application, Plan View
4.
Gussetted Attachment (5132G): Wall Mounted Application, Plan View
5.
Gussetted Attachment (5132G): Wall Mounted Application, Section View
6.
Adjustable Mounting Attachment (5132R): Wall Mounted Application, Plan View
7.
Adjustable Mounting Attachment (5132R): Wall Mounted Application, Section View
8.
C Clip Attachment (5141): Panel to Slab Application, requires 5105 Steel Edge Trim
9.
Standoff Attachment (5159): Wall Mounted Application, Plan View
10.
Standoff Attachment (5159): Wall Mounted Application, Section View
11.
Trellis: Corner Detail
12.

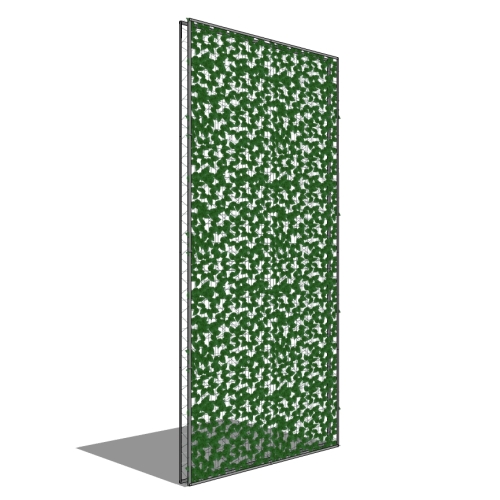

Greenscreen: Wall Mounted Trellis 4x8
13.

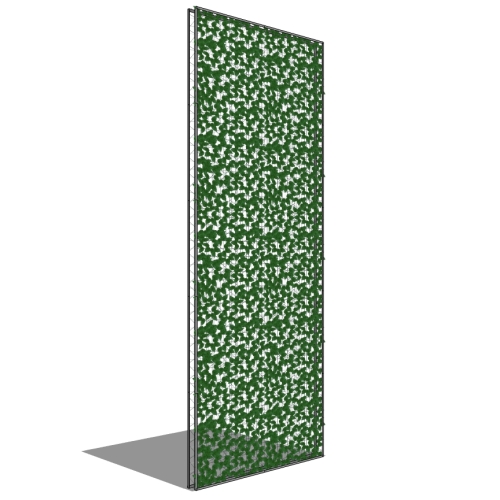

Greenscreen: Wall Mounted Trellis 4x10
14.

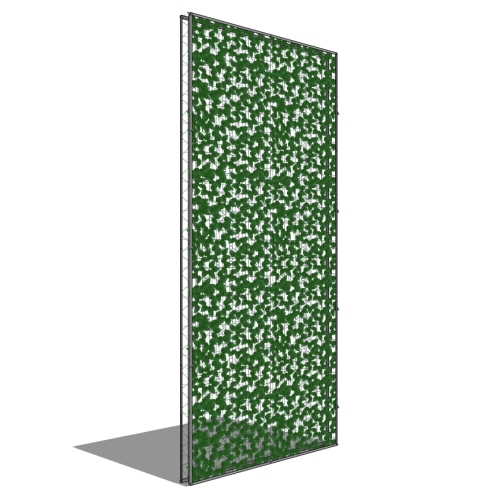

Greenscreen: Wall Mounted Trellis Dynamic Model
