Resort Cabanas

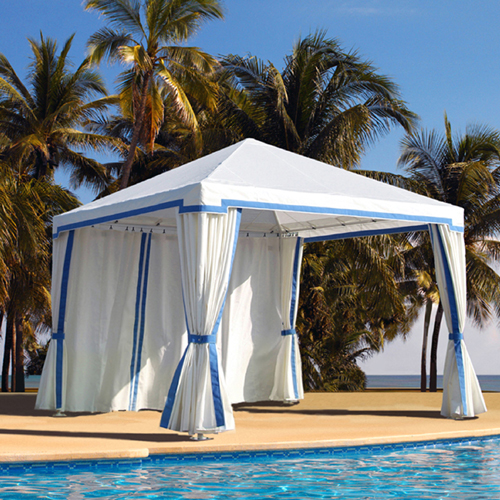

Wailea Cabana


WAILEA CABANA FEATURES:

  • Sunbrella® Awning Grade Solid and Striped Fabric Colors
  • Hanging Valance with Sewn Attachments
  • 3" Feature Stripe on the Curtains
  • 3" Feature Stripe on the Hanging Valance
  • Four (4) Traversing Cable Curtains
  • Four (4) Curtain Tie-Backs and Industrial Zippers
  • Buckle and Strap Top Cover Fasteners
  • Polyester Powder Coat Painted Frame (Black or White)
  • 7'-0" to 8'-0" Upright Leg Clearance
  • Four (4) Square Base Plates
  • Four (4) Roof Rafters
  • Steel Frame Construction

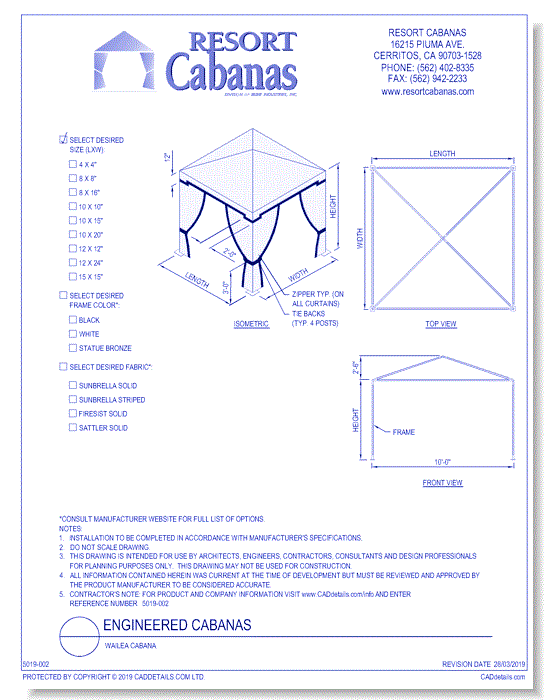

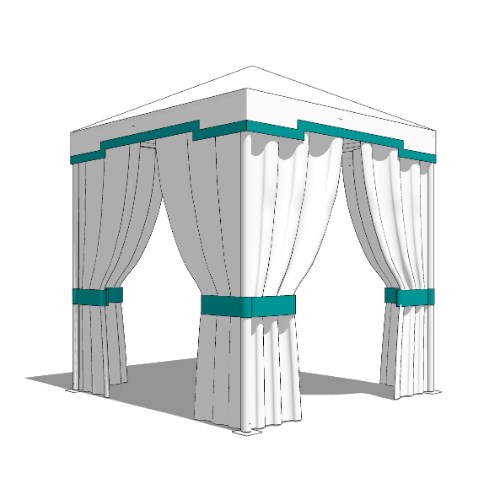

CAD Drawings BIM Models Resort Cabanas Wailea Cabana
CAD Drawings BIM Models Resort Cabanas Wailea Cabana CAD Drawings BIM Models Resort Cabanas Wailea Cabana CAD Drawings BIM Models Resort Cabanas Wailea Cabana CAD Drawings BIM Models Resort Cabanas Wailea Cabana
